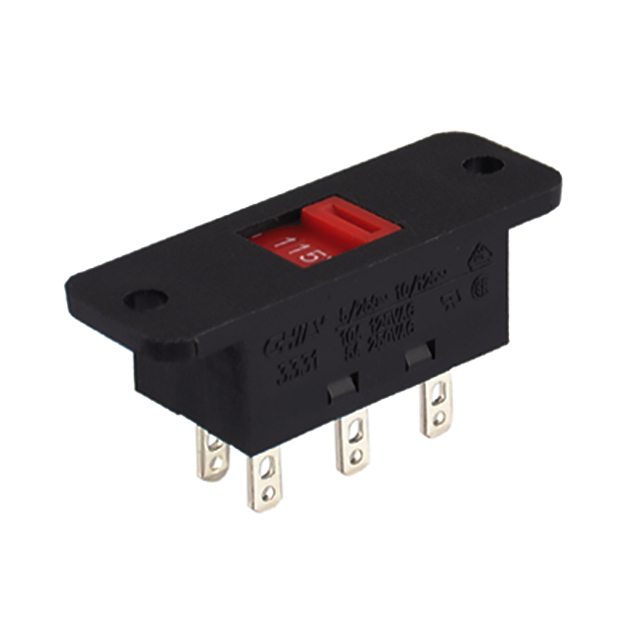

Power select switch
125V 10A (250V 5A)
W/approval
Unit price (USD)
Quantity Price
1000+ 0.7440
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

.Circuit: DPDT
.Switch function: On-On
.Rating: 10A 125VAC 5A 250VAC
.Contact resistance: 20mΩ Max. at 1A 2-4VDC
.Insulation resistance: 100MΩ Min. at 500VDC
.Withstand voltage: 2000VAC for 1 minute
