  4. B143

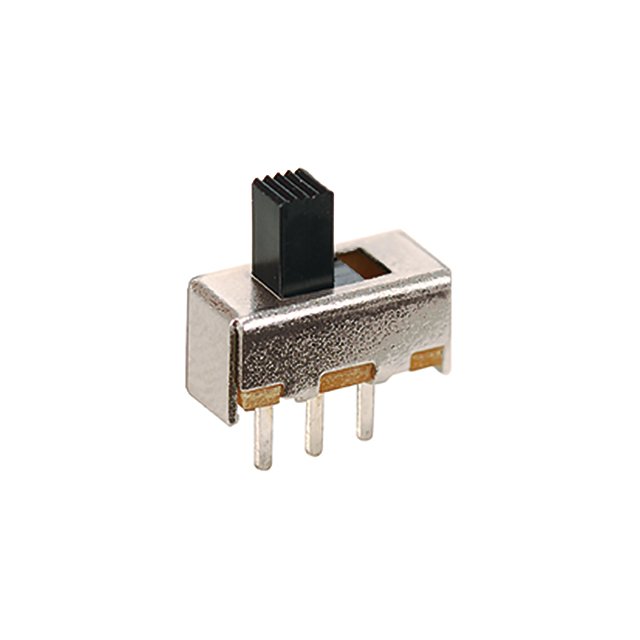

3P slide switch (1P2T)
Unit price (USD)
Quantity Price
10+ 0.5357
40+ 0.3061
200+ 0.1786
400+ 0.1488
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: 1P2T
·Rating: 0.5A 50VDC
·Contact resistance: 30mΩ Max. at 1A 5VDC
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating force: 200±100g
