Electrical Characteristics

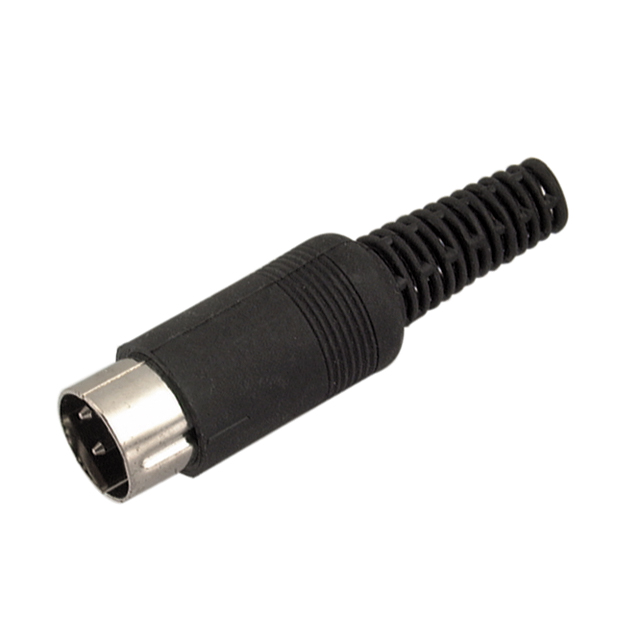

Specifications
·Gender: Male
·No. of contacts: 3
·Orientation: Straight
·Current rating: 1A
·Voltage rating: 100VAC
·Contact resistance: 30mΩ Max. (pin) / 50mΩ Max. (shell)
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 250VAC R.M.S. for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder
Materials
·Shell cover 6.0: EVA+LLDPE
·Shield cover A: Steel, nickel plated
·Shield cover B: Steel, nickel plated
·Housing: ABS
·Contact terminals: Brass, nickel plated
