Electrical Characteristics

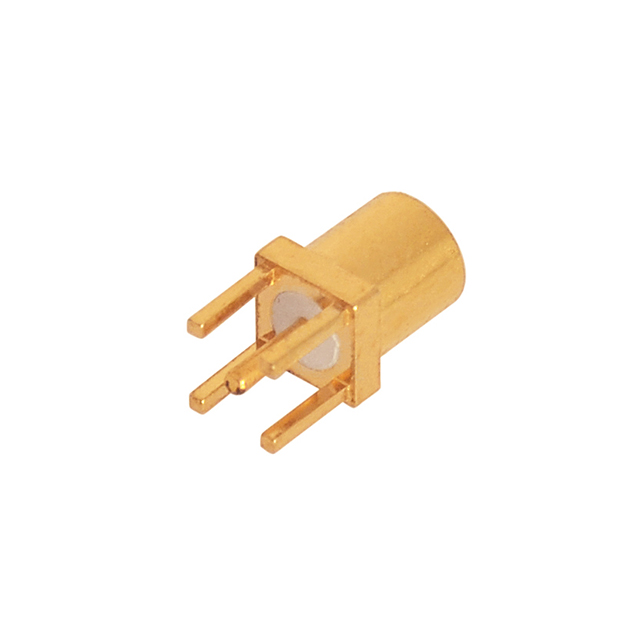

Specifications
·Gender: Female
·Connector type: MMCX
·Impedance: 50Ω
·Body orientation: Straight
·Mounting type: PCB mount
·Termination: Solder
·Frequency range: 0-6GHz
·Voltage rating: 170VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
Materials
·Body: Brass, gold plated
·Insulator: Teflon
·Pin: Beryllium bronze, gold plated
