Electrical Characteristics
Specifications

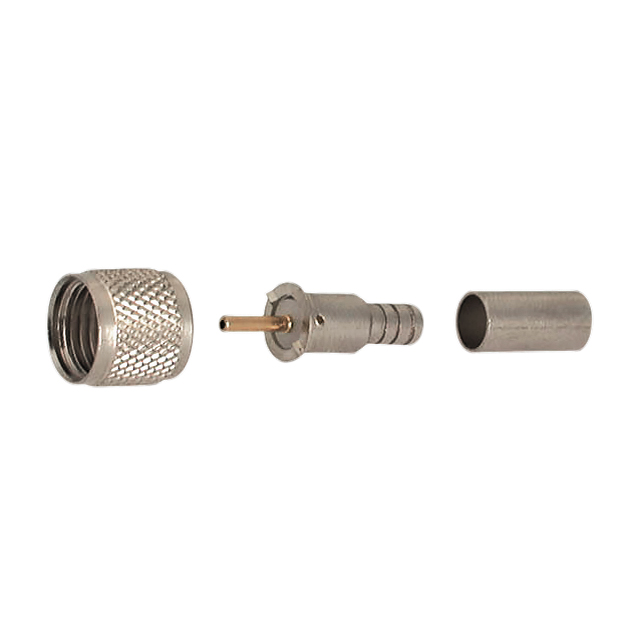

·Gender: Male
·Connector type: Mini UHF
.Impedance: 50Ω
·Body orientation: Straight
·Mounting type: Cable mount
·Termination: Solder
.Frequency range: 0-2.5GHz
.Voltage rating: 335VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1000VAC for 1 minute
Materials
·Shell: Brass, nickel plated
·Body: Brass, nickel plated
·Insulator: Delrin, white
·Pin: Brass, gold plated
·Ring: Brass, nickel plated
