Electrical Characteristics
Specifications

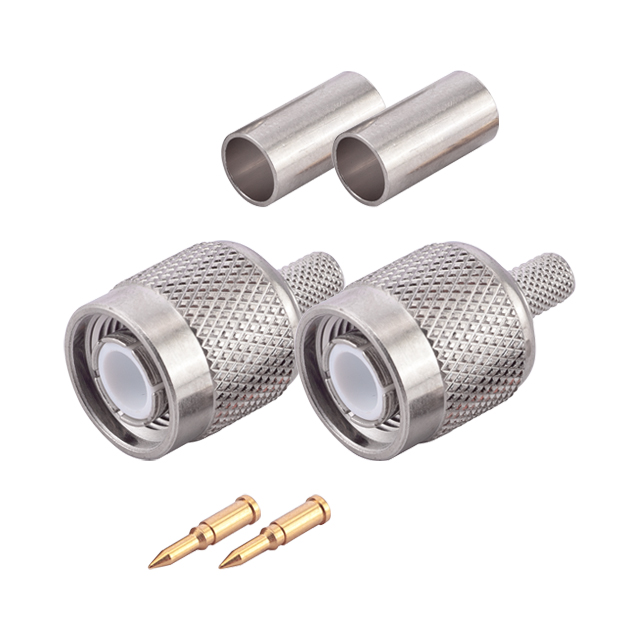

·Gender: Male
·Connector type: TNC
·Impedance: 50Ω
·Body orientation: Straight
·Mouting type: Cable mount
·Termination: Solder
·Frequency range: 0-4/0-1 GHz
·Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Materials
·Shell: Brass, nickel plated
·Body: Brass, nickel plated
·Insulator: Delrin
·Pin: Brass, gold plated
·Inner ring: Brass, nickel plated
·Ring: Brass, nickel plated
·O'ring: Rubber, red
·Washer: Steel, nickel plated
