Electrical Characteristics
Specifications

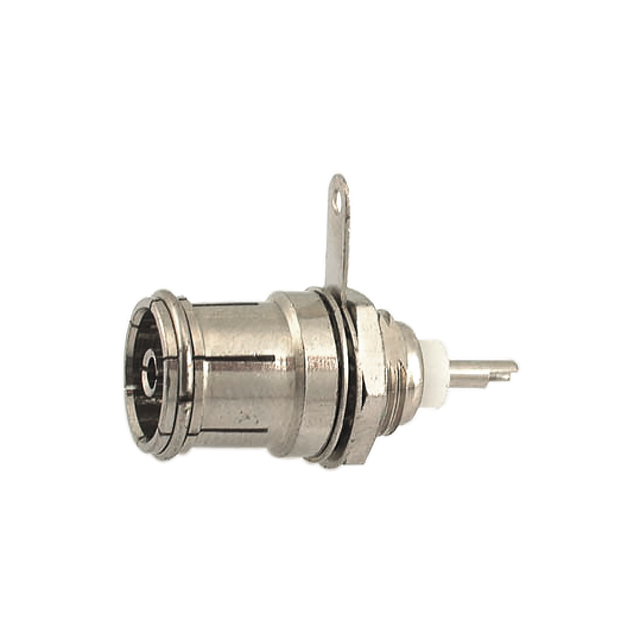

·Gender: Female
·Connector type: PAL
·Impedance: 75Ω
·Body orientation: Straight
·Mounting type: Panel mount
·Termination: Solder
·Frequency range: 0-1GHz
·Voltage rating: 500VAC
·Contact resistance: 5.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
Applications
·PAL series are developed for use on Phase alternate line TV antenna receiving equipment
·Countries using the PAL system include: Australia, Austria, Belgium, China, Denmark, Finland, Germany, Great Britain, Hong Kong, Italy, Kuwait, Netherlands, New Zealand, Norway, Portugal, Singapore, Spain, Sweden, Switzerland, and Thailand
