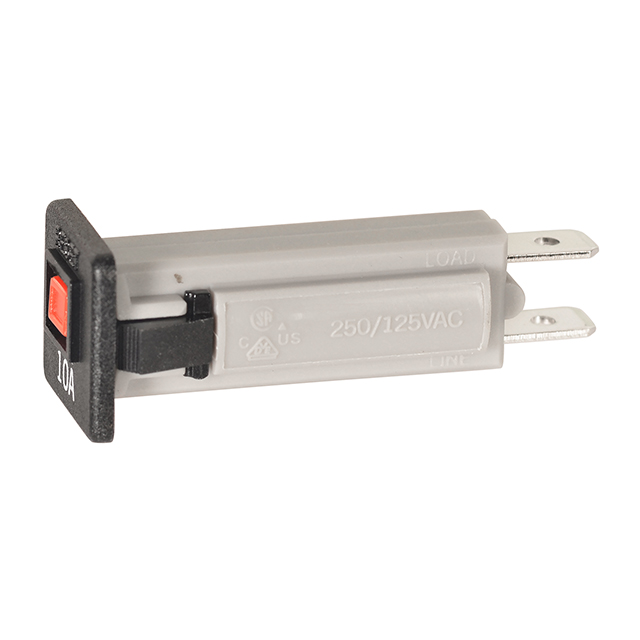

Circuit breaker (10A) W/approval
CSA: 3-15A 125V
VDE: 4-10A 250V/11-16A 125V
Unit price (USD)
Quantity Price
500+ 1.8353
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Input power: 32VDC / 125VAC / 250VAC
·Current rated: 10A
·Insulation resistance: 100MΩ Min.
·Dielectric strength: 1500VAC for 1 minute
·Interrupt capacity: 125VAC x 1000A, 250VAC x 200A
·Calibration:
25°C-105% of rated current-continuously carried
25°C-between 106% to 134%-may trip or not
25°C-135% of rated current-trip within 1 hour
25°C-150% of 2~4A-trip within 1hour
25°C-200% of rated current-trip within 1 minute
·Contact endurance: 125VAC x 150% of rated current 500 cycles
·Reset: Manual push reset
Trip time
Overload(2- 16 A)
600%: 0.3 - 3.0 sec
500%: 0.4 - 5.5 sec
400%: 0.5 - 9.5 sec
300%: 0.8 -12 sec
200%: 4.0 -30 sec
135%: trip within 1 hr
105%: no trip
