Electrical Characteristics

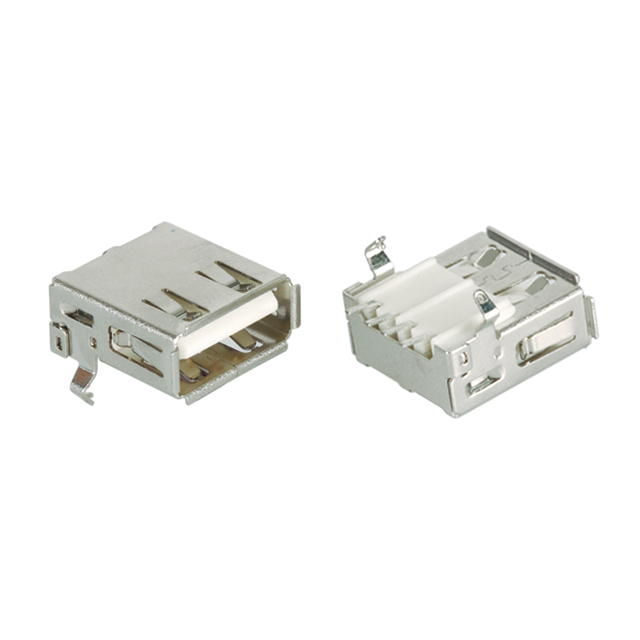

Specifications
·Gender: Female
·USB connector type: A
·Current rating: 1.5A
·Voltage rating: 250VAC
·Mounting type: Surface mount
·Orientation: Right angle
·Termination: Solder
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 750VAC for 1 minute
·Insertion force: 35 Newtons Max.
·Extraction force: 10 Newtons Min.
·Derability (life test): 1500 Cycles
Materials
·Housing: Nylon PA9T G.F., white
·Terminal: Phospher bronze t=0.25mm, gold/tin plated
·Shell: Brass t=0.3mm, nickel plated
