Electrical Characteristics

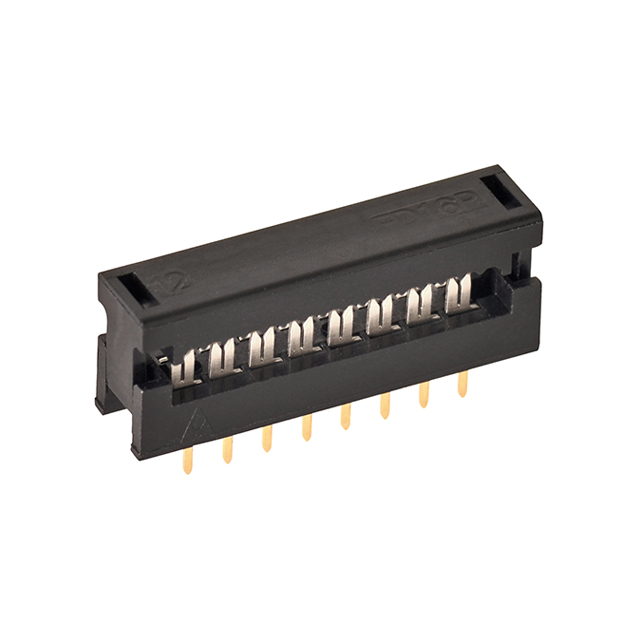

Specifications
·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 16
·No. of rows: 2
·Current rating: 1A
·Orientation: Straight
·Mounting type: Cable mount
·Contact resistance: 15mΩ Max.
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute
·Operating temperature: -40°C to +105°C
Materials
·Insulator: PBT+30% glass fiber (UL94V-0)
·Contact: Copper alloy, tin plated
