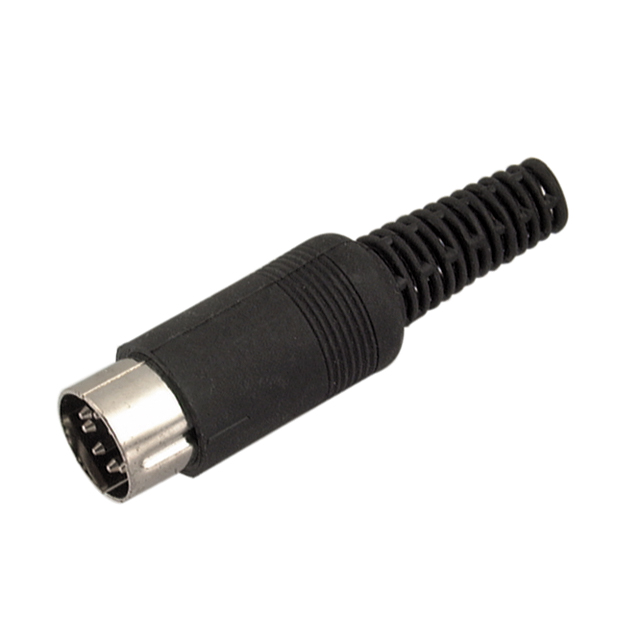

DIN Plug – Multi-Pin Circular Connector
DIN plugs are standardized circular connectors available in 3-, 4-, 5-, 6-, 7-, and 8-pin configurations. Originally used in audio and computer interfaces, they are still applied in professional audio, industrial control systems, and electronic test benches. Ideal for transmitting multi-pin signals in modular connector panels and test lead kits.

Specifications

·Gender: Male
·No. of contacts: 7
·Orientation: Straight
·Current rating: 1A Max
·Contact resistance: 30mΩ Max. (pin)
·Insulation resistance: 1000MΩ Min.
·Dielectric strength: 750VAC R.M.S. for 1 minute
·Mounting type: Cable mount
·Contact termination: Solder

Materials

·Shell: Spcc, t=0.30mm
·Insulator:High temperature thermoplastic with g.f,UL94v-0
·Contact terminals: Cooper alloy,t=0.20mm
