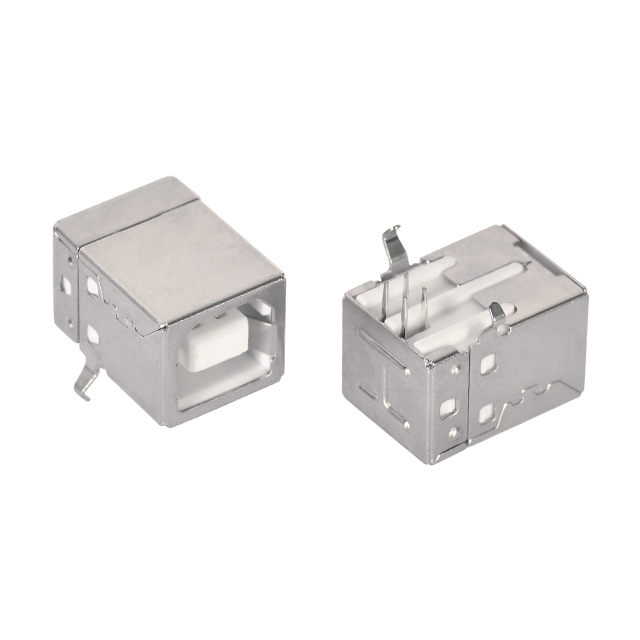

Specifications

·Gender: Female
·USB connector type: B
·Current rating: 1A
·Voltage rating: 250VAC
·Mounting type: Through hole
·Orientation: Right angle
·Termination: Solder
·Contact resistance: 30mΩ Max. before life test; 50mΩ Max. after life test
·Insulation resistance: 1000MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute without breakdown
·Operating temperature: -55°C to +85°C
·Insertion force: 35 Newtons Max.
·Extraction force: 10 Newtons Min.
·Solderability: Terminal shall be immersed in flux before text, then dip in molten
solder for 5±0.5 sec. at 245±5°C

Materials

·Housing: PBT UL94-V0, white
·Contact: Brass t=0.25mm
·Shell: Steel t=0.3mm, Cu: 40u" Min. 80u" Min. nickel plated
·Back shell: Steel t=0.3mm, Cu: 40u" Min. 80u" Min. nickel plated
Finish
·Contact area: 0.8u" Min. gold plated over 40u" nickel Min.
·Solder area: 80u" Min. tin plated over 40u" nickel Min.
