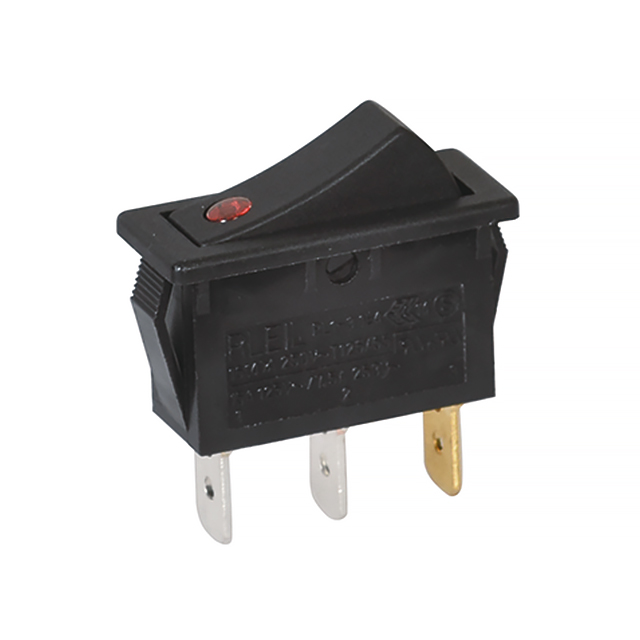

Rocker Switch – Easy Panel-Mount Switch
Rocker switches use a rocking motion for quick on-off control. Common in appliances, dashboards, and power strips, they offer durability, simple installation, and clear status indication. Available in illuminated and non-illuminated versions.
Specifications
·Circuit: SPST
·Switch function: On-Off W/round LED
·Rating: 15A 125VAC / 7.5A 250VAC
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operation force: 300~600gf
·Operation temperature: -25°C to +125°C
Materials
·Hoursing: Nylon#66 (UL94V-2)
·Rocker: Nylon#66 (UL94V-2)
·Terminal: Copper alloy, Ag plated
