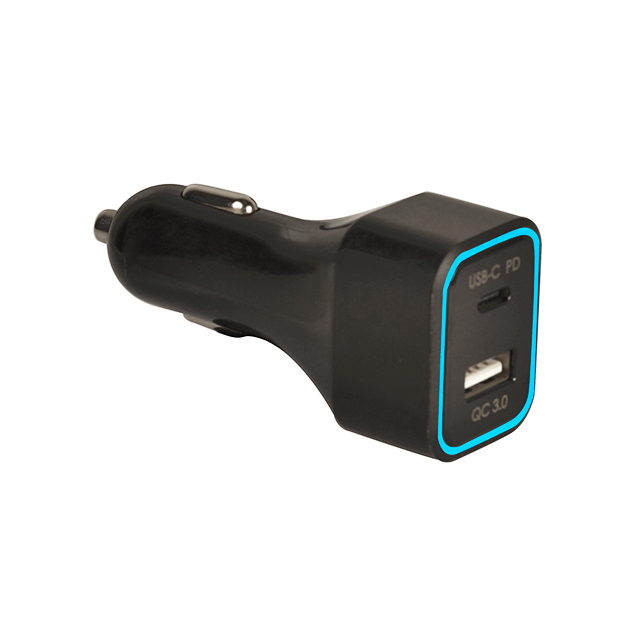

Auto plug to USB A & USB C type adapter with short circuit/ over current/ over temperature protection
Input: 12V / 24V
Output: Type A-QC3.0 (18W), Type C-PD3.0 (36W)
Dieses Produkt ist derzeit online nicht verfügbar,Bitte senden Sie uns Ihre Anfrage!
Datenblatt
Elektrische Eigenschaften

Overview

Auto Plug – Automotive Power Connector
Auto plugs, including 12 V cigarette lighter and battery terminal connectors, provide secure connections for vehicle power interfaces and automotive diagnostics. Available in barrel-type, removable tip, and fused variants, some with insulated handles and high-current capacity. Ideal for battery testing and on-board power monitoring.

Features

·Short circuit protection
·Over current protection
·Over temperature protection
·Powerful on-the-go charging
·Simultaneously charge two devices
·Suitable for most mobile phones and consumer electronic devices

Specifications

·USB type: A / C each 1 port
·Input voltage: 12VDC / 24VDC
·USB A output rating (QC3.0 18W): 0.5V3A / 9V2A / 12V1.5A
·USB C output rating (PD3.0 36W): 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.8A
·Indicator: Blue LED
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1000VAC for 1 minute
·Operation temperature: -10°C to +45°C
