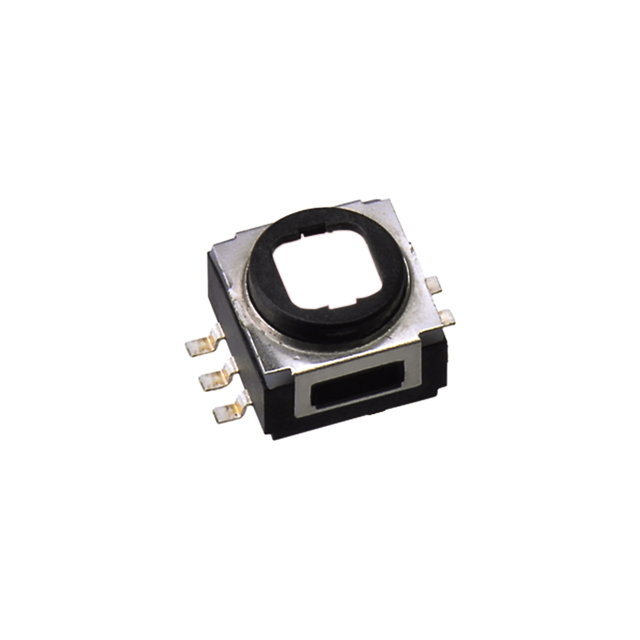

Tact Switch – Momentary Tactile Control
Tact switches provide precise, tactile feedback for momentary control. Used in remote controls, keypads, and medical devices, they feature low-profile designs, varied actuation forces, and through-hole or SMD options.
Specifications
·Rating: 50mA 32VDC
.Travel: 0.45mm
·Operating force: 400±100gf
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 100VDC
·Dielectric strength: 250VAC for 1 minute
·Operating life: 300,000 cycles
·Operating temperature: -40°C to +85°C
·Soldering temperature: -55°C to +85°C
Application
·Automotive
·Network equipment
·Telecommunications
·Medical equipment
·Industrial controls
