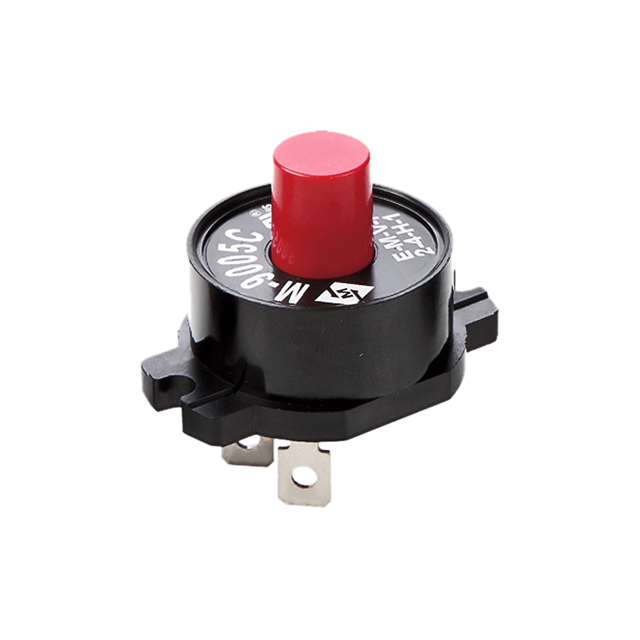

1" Single-phase motor protector
105°C-open / 63°C-close
5A NC manual reset

Artikelnummer：P6711BC
Produktsortiment : Motorschutz
Sicherheitszulassung：

Dieses Produkt ist derzeit online nicht verfügbar，Bitte senden Sie uns Ihre Anfrage!

Anfrage absenden

Datenblatt

Elektrische Eigenschaften

Features

·Single–phase type motors
·Normally closed contacts type
·Solution to motor overheat and locked rotor
·Temperature and current dual protection
·Used in single and dual voltage type motors
·Variety mounting and terminal options

Specifications

·Contact type: Normally close (NC)
·Input power: 110-120VAC / 220-240VAC
·Full load current: 5A
·Terminal type : 3 Fast clip
·Reset: Manual Reset
·Base: Eared
·Horsepower: 1/6HP~5HP
·Operating temperature: Open-105°C / close-63°C
·Operating tolerance: ±5°C
·Resume temperature tolerance: ±12°C
