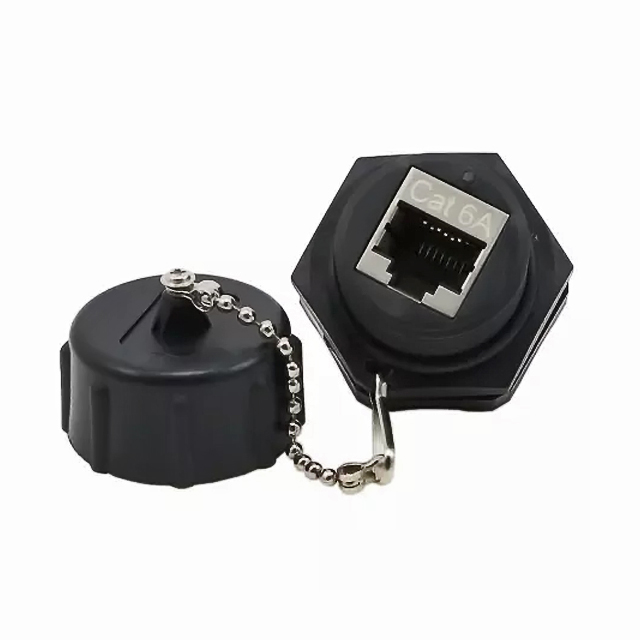

Waterproof modular jack 8P8C (RJ45) for Cat.6a with UL approval
Can reach to IP67
  • Artikelnummer:X98304
  • Produktsortiment : Telefon Buchse
  • Sicherheitszulassung:
Dieses Produkt ist derzeit online nicht verfügbar,Bitte senden Sie uns Ihre Anfrage!
Datenblatt
Elektrische Eigenschaften

Specifications

·Number of ways: 8P8C
·Connector type: Modular jack RJ45
·DC current rating: 1.5A
·DC resistance: 0.1Ω
·Contact resistance: 20mΩ Max.
·Insulation resistance: 500MΩ Min.
·Dielectric withstanding voltage: 1000VAC
·Plug retention force: 11 LBF Min.
·Durability: 200 termination cycles
·Contact compatibility: accommodates 22 to 24 AWG solid
·Operating temperature range: -10°C to +60°C
·Storage temperature range: -40°C to +68°C
·Humidity: 10% ~ 90% RH
·Insertion life: 750 mating cycles (with fcc compliant 8p plug)
·Contact force: 100 grams (with fcc compliant 8p plug)
·IP rating: IP67

Materials

·Main body: PBT+GF, UL94V-0
·Shielded case: Brass, nickel plated
·Coupler housing: ABS, UL94V-0
·Jack contacts: Phosphor bronze, 50u" gold plated
