Elektrische Eigenschaften

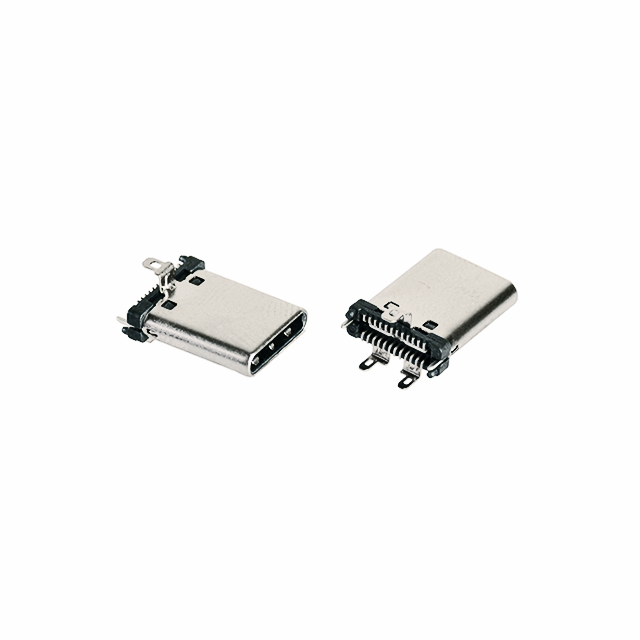

Specifications
·Gender: Male
·USB connector type: C
·Voltage rating: 5V
·No. of positions: 24 Ways
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 100MΩ Min.
·Withstand voltage: 100VAC for 1 minute
·Operating temperature: -25°C to +85°C
·Insertion force: 0.5~2.0kgf
·Extraction force: 0.8kgf~2.0kgf
·Durability: 10000 cycles
Materials
·Housing: LCP, UL94V-0, black
·Shell: Stainless steel, Ni30u" plated
·Latch: Stainless steel, MB: Ni50u" Sn80u" plated
·Spring: Stainless steel
·Terminal: Copper alloy, MB: Ni50u" Sn50u" Au3u" plated
