電気の特性

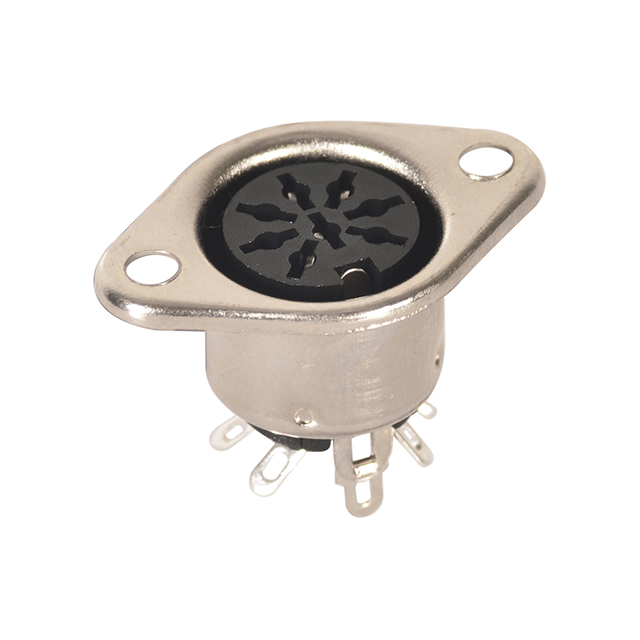

Specifications
·Gender: Female
·No. of contacts: 8
·Rating: 1A 100VAC
·Orientation: Straight
·Contact resistance: Pin-30mΩ Max. / shell-50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC Min.
·Withstand voltage: 250VAC for 1 minute
·Mounting type: Panel mount
·Contact termination: Solder
Materials
·Shell cover: Steel, nickel plated
·GND contactor: Phosphor bronze, nickel plated
·Housing: ABS
·Terminals: Copper, silver plated
