電気の特性

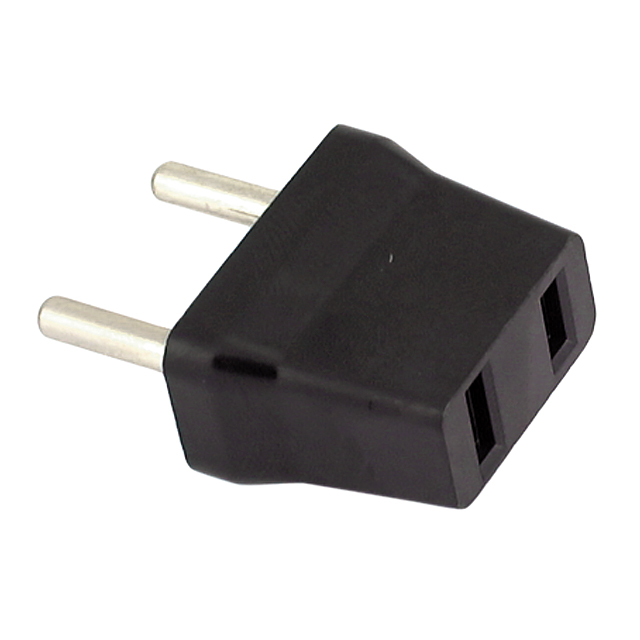

Specifications
·Country 1: US
·Country 2: Europe
·Current rating: 10A
·Voltage rating: 125V / 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 2000VAC 0.5mA for 1 minute
.Terminal strength: 3kgs at 1 minute
.Insertion force: 6kgs Max.
.Withdrawl force: 1.5kgs Min.
Materials
.Housing: Bakelite, PF-31
.Cap: Bakelite, PF-31
.Shaft: Brass
.Terminal: Brass, BSP1-EH 0.4t
.Screw: Steel, M2.6x10
