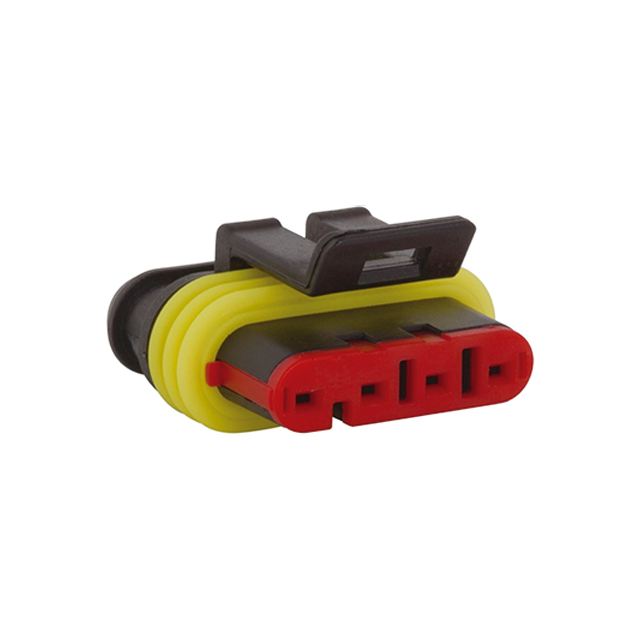

Specialseal 1.5 series automotive connector plug
4 ways 6mm
この商品はオンラインで注文ができなくで、お問い合わせてください。
お問い合わせ
データシート
電気の特性

Specifications

·Type: Automotive connector
·Series: Specialseal 1.5
·Number of contacts: 4
·Number of Rows: 1
·Gender: Male
·Current rating: 10A Max.
·Voltage drop: 3mV/A
·Isolation resistance: 100MΩ
·Dielectric resistance: 1500VAC
·Mounting type: Cable mount
·Termination method: Crimp
·Operating temperature: -40°C to +125°C
·Applicable wire size: 22AWG ~ 16AWG

Materials

·Housing: Nylon 66
·Colour: Black
