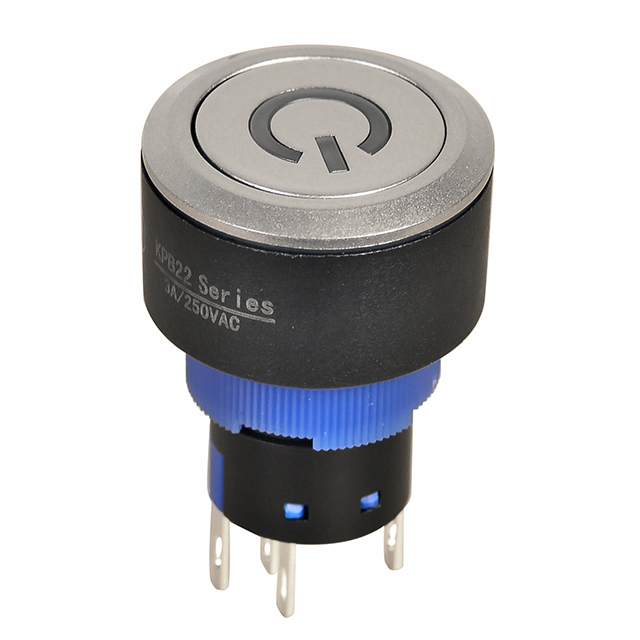

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.

Specifications

·Circuit: SPDT
·Switch function: On-(On)
·Rating: Ith 5A 250VAC, resistive load 3A 250VAC
·Contact resistance: 50mΩ Max. @1A 12VDC (inital)
·Insulation resistance: 1000MΩ Min. at 500VDC
·Dielectric strength: 2000V RMS @sea level
·Electrical life: 50,000 make-and-break cycles at full load
·Mechanical life: Momentary 1,000,000
·Operating temperature: -20°C to +55°C
·Travel: About 3.2mm
·Torque: 0.3~0.5Nm
·Operation pressure: 2.5±1N
·Ingress protection: IP65
·LED color: Red, yellow, green, blue, white
·LED voltage: 6V, 12V, 24V, 220V available

Materials

·Bezel: PC
·Base: PBT (UL94-VO), PC (UL94-V2)
·Actuator: PC / POM
·Inner assembly: POM / PA66
·Spring: Stainless steel
·Sealing: Silicone
·O-ring: Silicone
·Terminal/contact: Brass, silver plated
·Hex nut: PC
