Specifications
·Number of ways: 8P8C

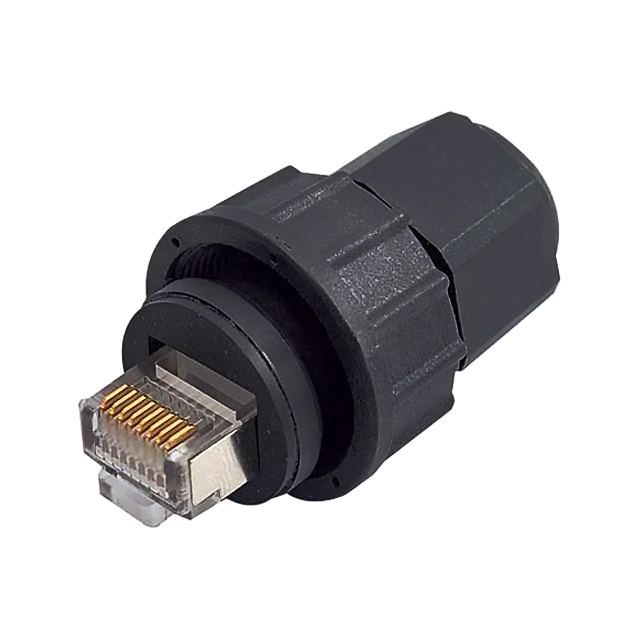

·Connector type: Modular plug RJ45
·Rating: 1.5A 125V
·Contact resistance: 30mΩ Max. (initial)
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric withstanding voltage: 750VAC for 1 minute
·Seal for cable OD: Φ4.5 ~ Φ6.3 mm
·IP rating: IP67
Materials
·Sealing nut: PA66, black
·Seal: EPDM, black
·Screw nut: PPE, black
·Clamp ring: PC, black
·Gasket: EPDM, black
·RJ45 plug: Cat.6 shield plug
