Features

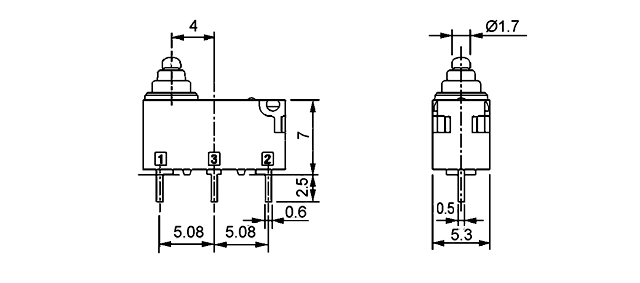

·Small dimensions, just 13.3x5.3x7.0mm
·Good feeling and more actuators are applied
Specifications
·Circuit: SPDT
·Switch function: On-On
·Rating: 1A 24VDC/ 2A 12VDC
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 600VAC for 1 minute
·Operating force: 75gf
·Operating temperature: -40°C to +85°C
·Mechanical life: 1,000,000 cycles
·Electrical life: 100,000 cycles
·Protection degree: IP67
