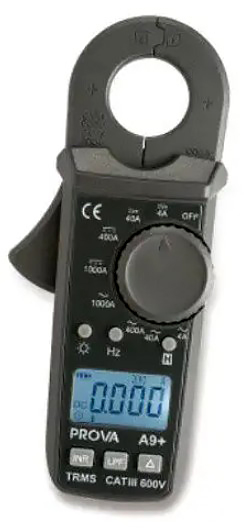

TES - EV Clamp meter PROVA A9+ 2021.06.30


TES - EV Clamp meter PROVA A9+

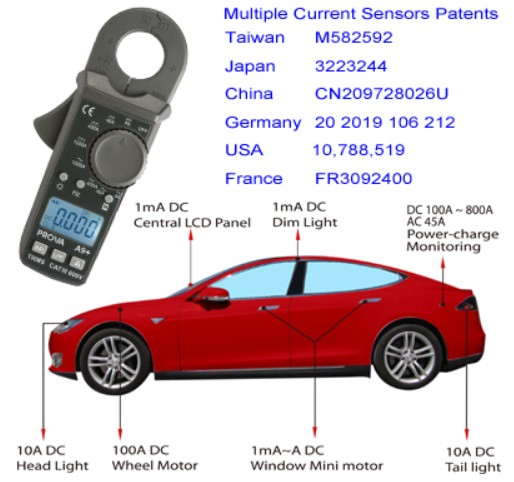

  • Designed for EV (Electric Vehicle)
  • Both lower DC Current and High DC Current (1000A)

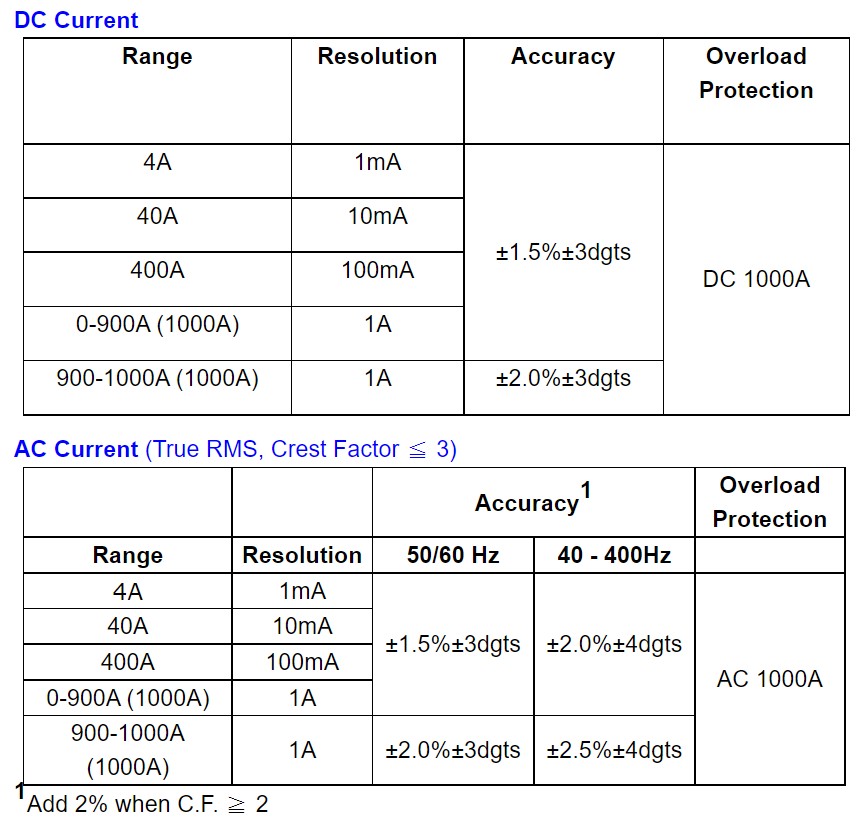

  • Accurate AC/DC digital clamp meter
  • Best accuracy ±1.5% ±3dgts
  • AC 1mA, DC 10mA high resolution
  • True RMS measurement
  • One touch zero (A) for DCA adjustment
  • 25 mm diameter jaws
  • Fast bar graph display (30 times/sec.) for transient observation
  • In-Rush Current Measurement with lOOmS intégration time
  • Non-Contact Frequency Measurement (min. sensitivity 0.06 AC A)
  • Non-Contact Voltage (NCV) Detection from 80V to 600V at 50/60Hz
  • Low Pass Filter (LPF) at 1 KHz Cut-off Frequency
  • Large 3 3/4 digits LCD Data Hold function
  • 15 minutes auto-power-off with beeping warning before turning otf
  • Backlight with 5 minutes of auto-backlight-off
  • Easy single rotary switch for any function selection
  • Ideal for Works in crowded switch box or cable areas
