Total: 97 Products

Product

Product Details
Price
Data Sheet
Remark
Specification

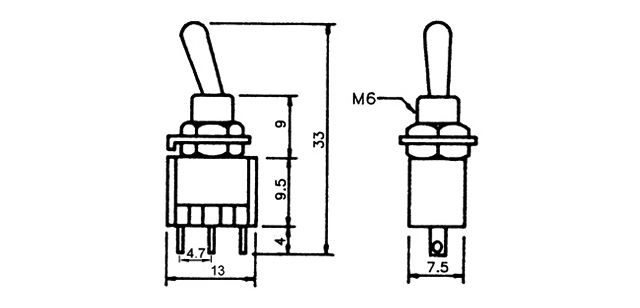

3P mini toggle switch (SPDT)
on-on gold-pin
Unit price (USD)
5+ 20+ 100+ 200+
1.1724 0.6700 0.3908 0.3257
Add
Enter Quantity to Check Lead Time
Rating: 5A 120VAC / 2A 250VAC
Switch operation: On-on
Contact configuration: SPDT
Mounting type: Panel mount
Terminal type: Solder
6P mini toggle switch (DPDT)
on-on gold-pin
Unit price (USD)
5+ 20+ 100+ 200+
1.4483 0.8276 0.4828 0.4023
Add
Enter Quantity to Check Lead Time
Rating: 5A 120VAC / 2A 250VAC
Switch operation: On-on
Contact configuration: DPDT
Mounting type: Panel mount
Terminal type: Solder
Keylock switch 2P off-on
Zinc alloy die cast housing
Unit price (USD)
1+ 5+ 25+ 50+
6.2931 3.5961 2.0977 1.7481
Add
Enter Quantity to Check Lead Time
Rating: 1A 125VAC / 0.5A 250VAC
Zinc alloy die cast housing
Key withdrawals in both positions
2 position (off-on) 2 terminals
All keyed alike or many combinations available
Keylock switch 2P off-on
Zinc alloy die cast housing
Unit price (USD)
1+ 2+ 10+ 20+
11.2069 6.4039 3.7356 3.1130
Add
Enter Quantity to Check Lead Time
Rating: 4A 125VAC / 2A 250VAC
Zinc alloy die cast housing and cylinder
Key withdrawals in both positions
2 position (off-on) 2 tubular terminals
Many combinations available
Keylock switch 3P on-on
Zinc alloy die cast housing
Unit price (USD)
25+
3.2088
Add
Enter Quantity to Check Lead Time
Rating: 4A 125VAC / 2A 250VAC
Zinc alloy die cast housing and cylinder
Key withdrawals in both positions
2 position (off-on) 3 terminals
All keyed alike or many combinations available
2P rocker switch (SPST) on-off
125V 10A (250V 6A) W/approval
Unit price (USD)
10+ 40+ 200+ 400+
0.7586 0.4335 0.2529 0.2107
Add
Enter Quantity to Check Lead Time
Circuit: SPST
Switch function: On-Off
Contact rating: 10A 125VAC / 6A 250VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 500MΩ Min.
2P waterproof pushbutton switch (SPST)
Open type 125V 125mA
  • Item No.：B1313A
  • Color
Unit price (USD)
1+ 5+ 25+ 50+
3.7552 2.1458 1.2517 1.0431
Add
Enter Quantity to Check Lead Time
Function: Off-(On)
Current rating: 400mA @ 32VAC
Voltage rating: 32VAC
Mounting type: Panel mount
IP rating:67
3P slide switch (1P2T)
Unit price (USD)
10+ 40+ 200+ 400+
0.5172 0.2956 0.1724 0.1437
Add
Enter Quantity to Check Lead Time
Circuit: 1P2T
Rating: 0.5A 50VDC
Contact resistance: 30mΩ Max.
Insulation resistance: 100MΩ Min.
Withstand voltage: 500VAC for 1 minute
Square type pushbutton switch
Open type
  • Item No.：B160B
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.1724 0.6700 0.3908 0.3257
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1000VAC for 1 minute
Mini pushbutton switch
Open type
  • Item No.：B163A
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.0345 0.5911 0.3448 0.2874
Add
Enter Quantity to Check Lead Time
Function: Momentary
Current rating: 1A
Voltage rating: 125VAC
Actuator shape: Round
Mounting type: Panel mount
Mini pushbutton switch
Close type
  • Item No.：B163B
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.2414 0.7094 0.4138 0.3448
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NC / Push off
Rating: 1A 125VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1000VAC for 1 minute
Mini pushbutton switch
Open type
  • Item No.：B164B
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.3966 0.7980 0.4655 0.3879
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NO / Off-(On)
Rating: 0.5A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1000VAC for 1 minute
Pushbutton switch
Open type
  • Item No.：B165M
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.1724 0.6700 0.3908 0.3257
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1000VAC for 1 minute

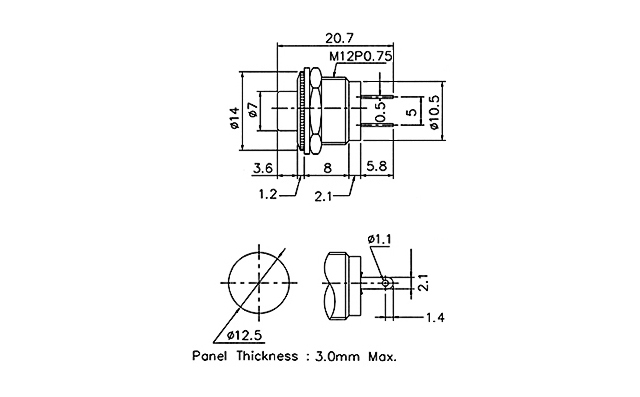

Mini pushbutton switch
Open type
  • Item No.：B166
  • Color
Unit price (USD)
2+ 10+ 50+ 100+
1.9828 1.1330 0.6609 0.5508
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NO / Off-(On)
Rating: 1A 125VAC
Contact resistance: 20mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

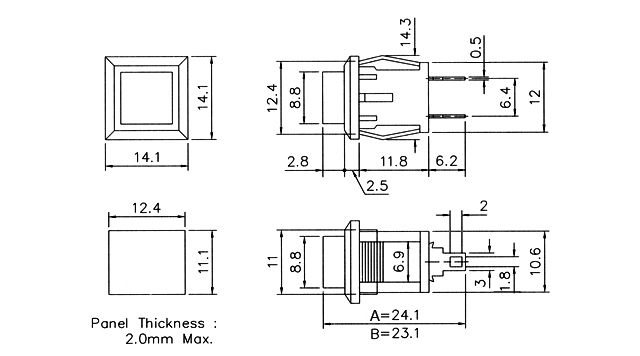

Square type pushbutton switch
Open type
  • Item No.：B169A
  • Color
Unit price (USD)
10+ 40+ 200+ 400+
0.5345 0.3054 0.1782 0.1485
Add
Enter Quantity to Check Lead Time
Switch function: Momentary / NO / Off-(On)
Rating: 3A 125VAC
Contact resistance: 50mΩ Max.
Insulation resistance: 100MΩ Min.
Dielectric strength: 1500VAC for 1 minute

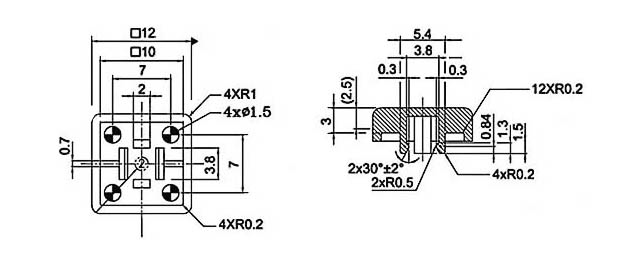

Square cover for B1729 & B17295
  • Item No.：B17171
  • Color
Unit price (USD)
50+ 200+ 1000+ 2000+
0.1293 0.0739 0.0431 0.0359
Add
Enter Quantity to Check Lead Time
Shape: Square
For use: B1729 nd B17295
Fit switch: 12 x 12 mm
Size: 12 x 12 x 5.5 mm

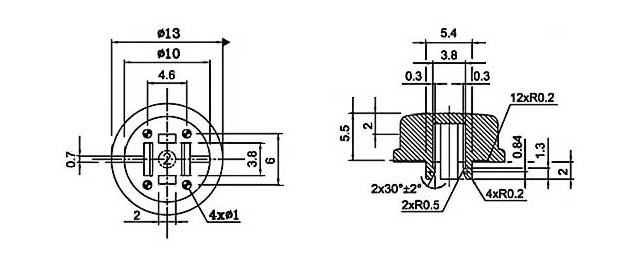

Round cover for B1729 & B17295
  • Item No.：B17172
  • Color
Unit price (USD)
50+ 200+ 1000+ 2000+
0.1293 0.0739 0.0431 0.0359
Add
Enter Quantity to Check Lead Time
Shape: Round
For use: B1729 nd B17295
Fit switch: 12 x 12 mm
Size: 13 x 13 x 5.7 mm

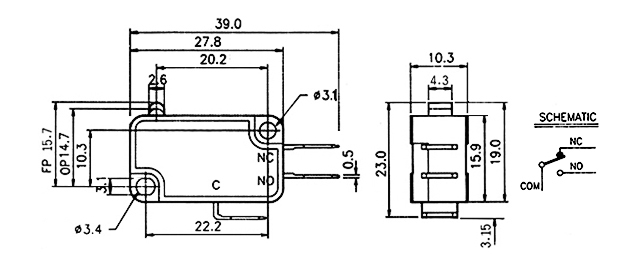

Micro switch (SPDT) on-on 110gf
250V 5A W/approval
Unit price (USD)
5+ 20+ 100+ 200+
1.1207 0.6404 0.3736 0.3113
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch fucntion: On-On
Rating: 5A 125VAC / 5A 250VAC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.
Micro switch (SPDT) on-on 80gf
250V 5A W/approval
Unit price (USD)
5+ 20+ 100+ 200+
1.2931 0.7389 0.4310 0.3592
Add
Enter Quantity to Check Lead Time
Circuit: SPDT
Switch fucntion: On-On
Rating: 5A 125VAC / 5A 250VAC
Contact resistance: 100mΩ Max.
Insulation resistance: 100MΩ Min.

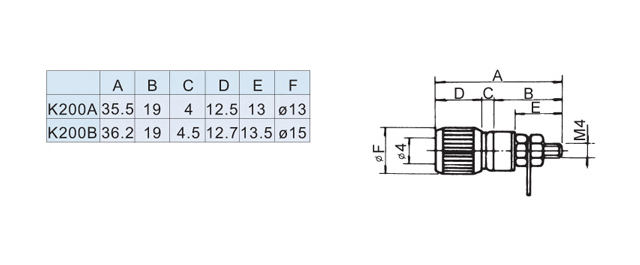

Binding post
  • Item No.：K200A
  • Color
Unit price (USD)
5+ 20+ 100+ 200+
1.2931 0.7389 0.4310 0.3592
Add
Enter Quantity to Check Lead Time
Gender: Female
Current rating: 10A
Voltage rating: 125VAC
Mounting: Panel mount
Length: 35.5 mm
