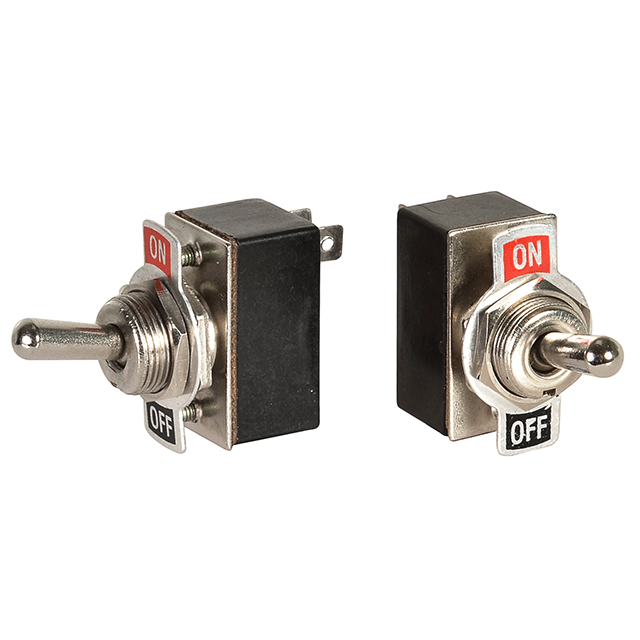

2P toggle switch (SPST) on-off
125V 4A
Price per each (USD)
Quantity Price
5+ 1.7308
20+ 0.9890
100+ 0.5769
200+ 0.4808
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Circuit: SPST
·Rating: 4A 125VAC / 2A 250VAC
·Switch function: On-off
·Mounting type: Panel mount
·Termination: Tab
·Contact resistance: 50mΩ Max
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Operating temperature: -20°C to +65°C
·Electrical life: 20,000 make and break cycles at full load
