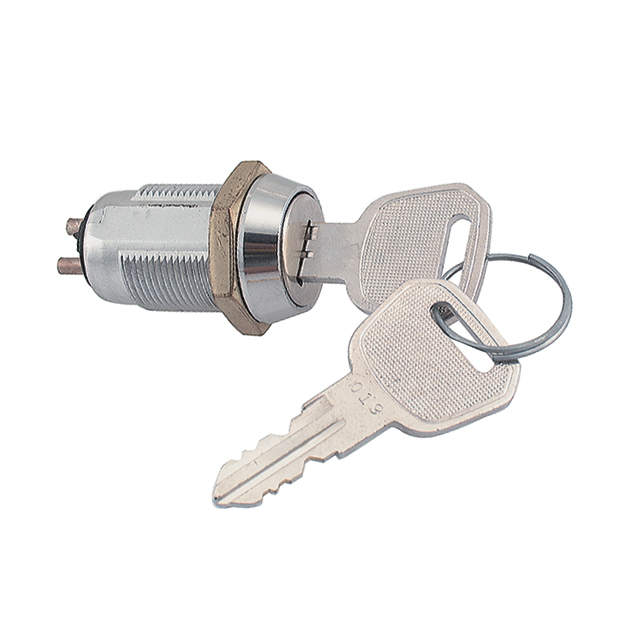

Keylock Switch – Secure On/Off Control
Keylock switches provide reliable, secure on/off or multi-position control for electrical devices. Designed for industrial, commercial, and consumer use, they ensure authorized access and prevent accidental operation. Suitable for machinery, security systems, control panels, and professional equipment.

Descriptions

·Zinc alloy die cast housing and cylinder
·Bright nickel plated standard
·Dust shutter mechanism
·5 disc tumbler mechanism
·Reversible double-bitted brass keys, nickel plated
·Key withdrawals in both positions
·Silver plated contacts and terminals
·2 position (off-on) 2 terminals
·Hex nut mounted.
·All keyed alike or many combinations available

Specifications

·Rating: 4A 125VAC / 2A 250VAC
·Contact resistance: 10mΩ Max.
·Insulation resistance: 500MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
