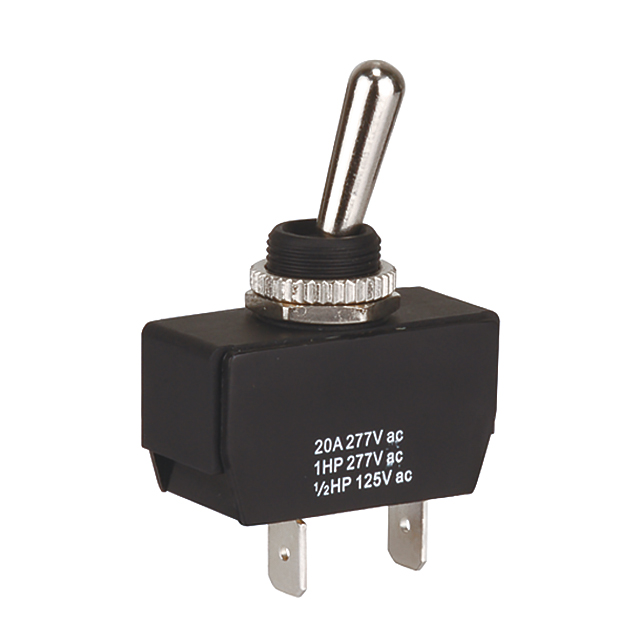

Toggle Switch – Manual Lever Control Switch
Toggle switches are lever-operated switches for dependable on-off or multi-position control. Used in machinery, control panels, marine, and automotive systems, they come in multiple sizes, mounting styles, and voltage ratings.
Specifications
·Circuit: SPST
·Switch function: On-Off
·Rating: 16A 250VAC
·Contact resistance: 50mΩ Max.
·Insulation resistance: lOOMΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Operating temperature: 0°C to 85°C
Materials
·Frame: Nylon 66
·Cover: PA66 + 30%GF
·Terminal: Copper alloy
·Contact: Copper alloy
