Electrical Characteristics
Overview

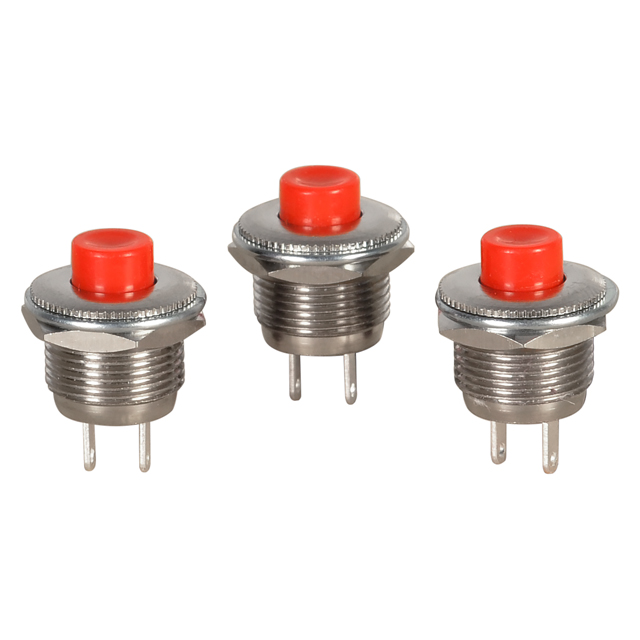

Pushbutton Switch – Momentary or Latching Control
Pushbutton switches activate circuits with a press, available in momentary or latching types. Used in industrial equipment, electronics, and reset circuits, they offer tactile feedback and options like illumination, waterproofing, and anti-vandal designs.
Specifications
·Switch function: Momentary / NO / Off-(On)
·Rating: 1A 125VAC
·Contact resistance: 20mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
·Electrical life: 30,000 make and break cycles at full load
