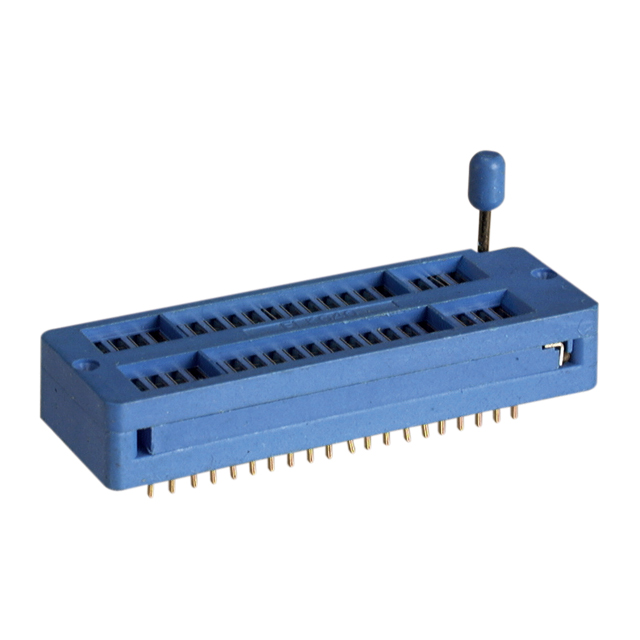

Features

·Compact mechanical construction to ensure long term life.
·Zero insertion and extraction pressure.
·Standard 2.54mm (0.1") IC pitch, easy to mount in PC board.
·All materials are UL94V-0 grade fire retardant plastic.
·Gold plated contact to ensure low contact resistance and long operation life.

Specifications

·Contact rating: 100mA 50VDC
·Contact resistance: 10mΩ Max. (initial) / 20mΩ Max. (after life test)
·Insulation resistance: 100MΩ Min.
·Dielectric strength: 500VDC Min. for 1 minute
·Capacitance: 5pF Max. (between adjacent contacts)
·Operation temperature: -25°C to +70°C
·Storage temperature: -40°C to +85°C
·Operation life: 50,000 cycles (without load) / 25,000 cycles (with load)
·Humidity: 95% RH, 40°C for 96 Hrs.
·Vibration: 10 to 55Hz for 6Hrs.
·Solderability: After flux 230±5°C for 5±0.5 seconds 95% coverage
·Soldering heat: After 260±5°C for 5±1 seconds shall have no deterioration

Materials

·Housing: Polybutylene terephtalate
·Contacts: Gold plated over Titanium-Copper alloy
·Screw: Zinc plated over steel
·Handle: Zinc plated over steel
·Batten: Stainless steel
