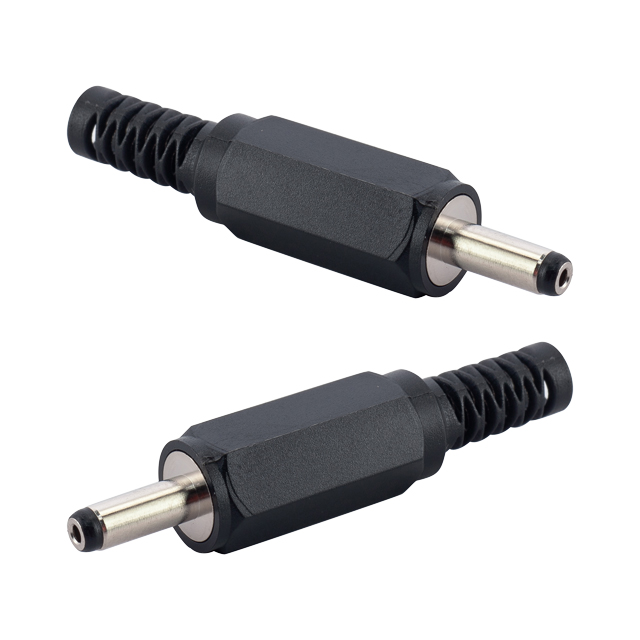

DC plug 1.35x3.45 (L9)
W/cable protector
Unit price (USD)
Quantity Price
5+ 1.2500
20+ 0.7143
100+ 0.4167
200+ 0.3472
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·Current rating: 1A
·Voltage rating: 12VDC
·Inner diameter: 1.35mm
·Outer diameter: 3.45mm
·Barrel length: 9.5mm
·Orientation: Straight
·Mouting type: Cable mount
·Contact resistance: 30mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Withstand voltage: 500VAC for 1 minute

Materials

.Insulator ring: POM,black
.Inner barrel: Brass, nickel plated
.Outer sleeve: Brass, nickel plated
.Ground terminal: Brass, nickel plated
.Housing: PE, black
