Electrical Characteristics
Specifications
·Gender: Female - female

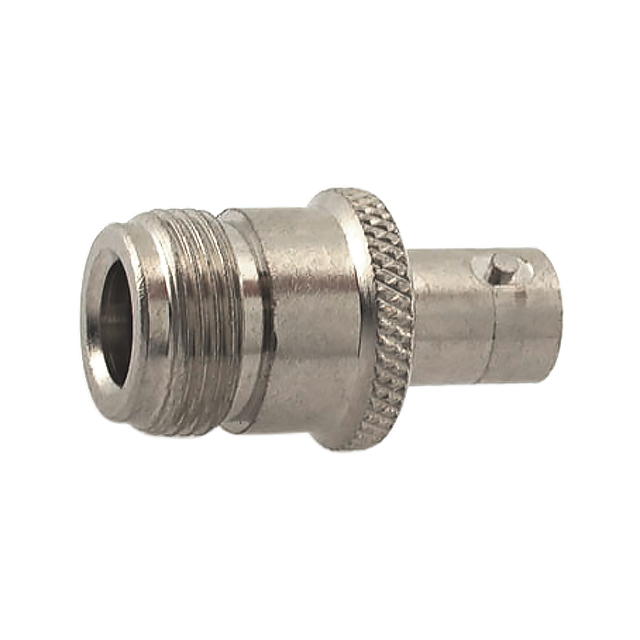

·Adapter type: N to BNC
·Adapter type A: N female
·Adapter type B: BNC female
·Impedance: 50Ω
·Body orientation: Straight
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
Materials
·Body: Brass, nickel plated
·Insulator: Delrin
·Pin: Brass, nickel plated
