Electrical Characteristics
Specifications

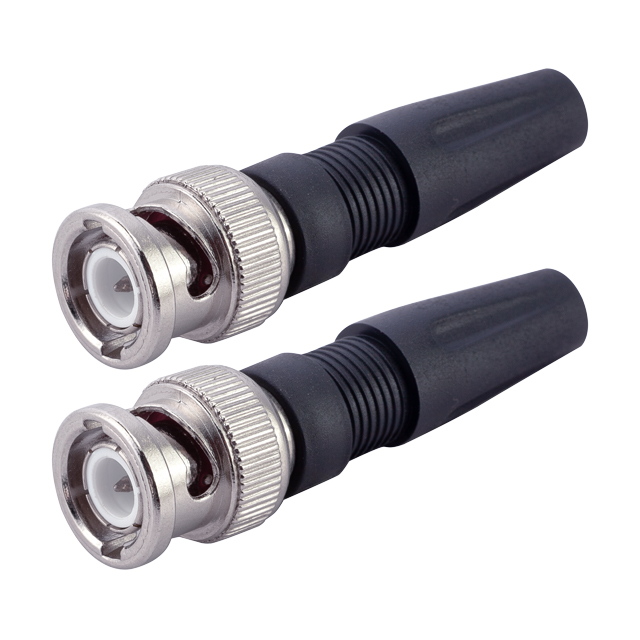

·Gender: Male
·Connector type: BNC
.Impedance: 50Ω
.Frequency range: 0-4/0-1 GHz
.Voltage rating: 500VAC
·Contact resistance: 3.0mΩ Max.
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 1500VAC for 1 minute
·Orientation: Straight
·Mouting type: Cable mount
·Termination: Solderless
Materials
·Body: Brass, nickel plated
·Shell: Zinc alloy
·Pin: Brass, nickel plated
·Insulator: Delrin
·Plastic shell: PVC
