Electrical Characteristics
Descriptions

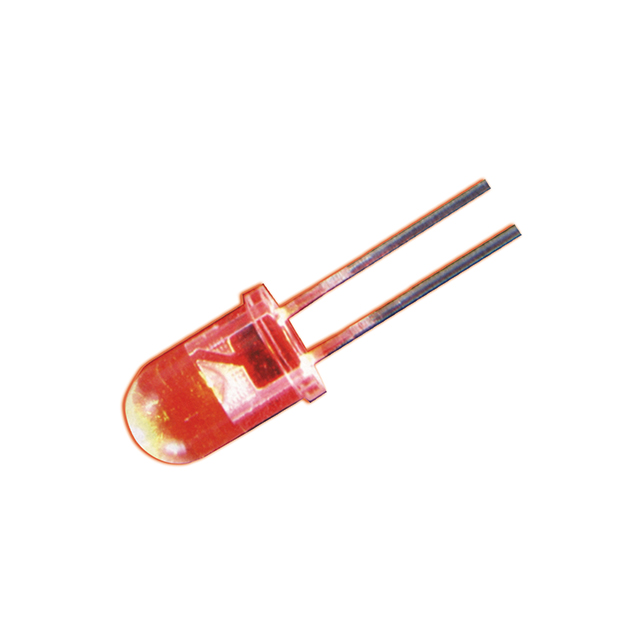

·Super bright LED lamp
·Round type
·T1-3/4 (5mm) diameter
·Lens color: Water clear
·With flange
·Solder leads without stand-off
·Compliant with RoHS
Features
·Emitted color: Super red
·High luminous intensity
·Technology: AlGaInP
·Peak wavelength λp=630nm
·Viewing angle: 30°
Specifications
1.Absolute maximum ratings
·Power dissipation: 120mW Max.
·Peak forward current (1/10 duty cycle @1KHz): 100mA Max.
·Continuous forward current: 50mA Max.
·Reverse voltage: 5V Max.
·Operating temperature: -40°C to +85°C
·Storage temperature: -40°C to +85°C
·Solder temperature 1.6mm from body for 3 seconds at 260°C
2.Optical-electrical characteristics
·Luminous intensity: 9000mcd
·Forward voltage: 2.2V
·Reverse current: 10uA Max.
·Peak wavelength: 630nm
·Dominant wavelength: 625nm
