Electrical Characteristics
Specifications
·Number of ways: 6P4C

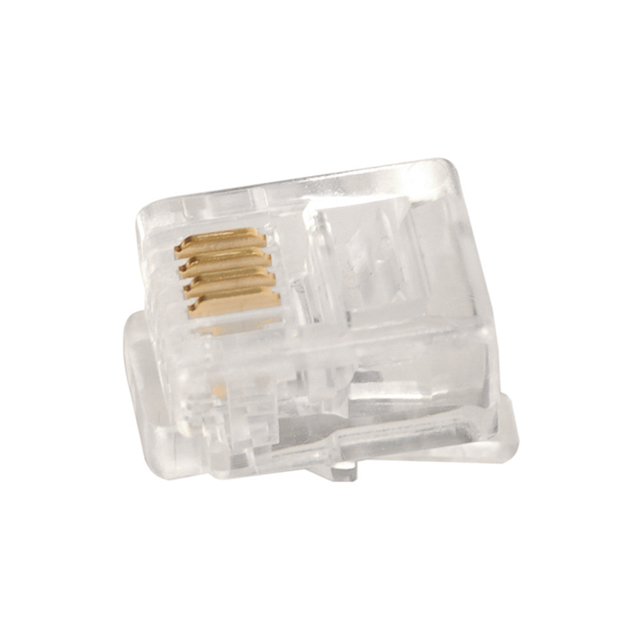

·Connector type: Modular plug RJ11
·Current rating: 2A
·Voltage rating: 250VAC Max.
·Orientation: Straight
·Mounting type: Cable mount
·Contact resistance: 20mΩ Max. (initial)
·Insulation resistance: 500MΩ Min.
·Dielectric withstanding voltage: 1000VAC
·Durability: 500 Mating Cycles
·Contact retention: 1.5 lbs (6N) Min.
·Cable-to-plug tensile strength: 20 lbs (89N) Min.
·Operation temperature: -25°C to +80°C
·Length: 12.3 mm
·Width: 9.65 mm
Materials
·Housing: Polycarbonate UL94-V0 or 94-V2, clear
·Contacts: Phosphor bronze 0.35t
·Plate： Gold plated flash on contact area over 100 microinch Min. nickel underplate
