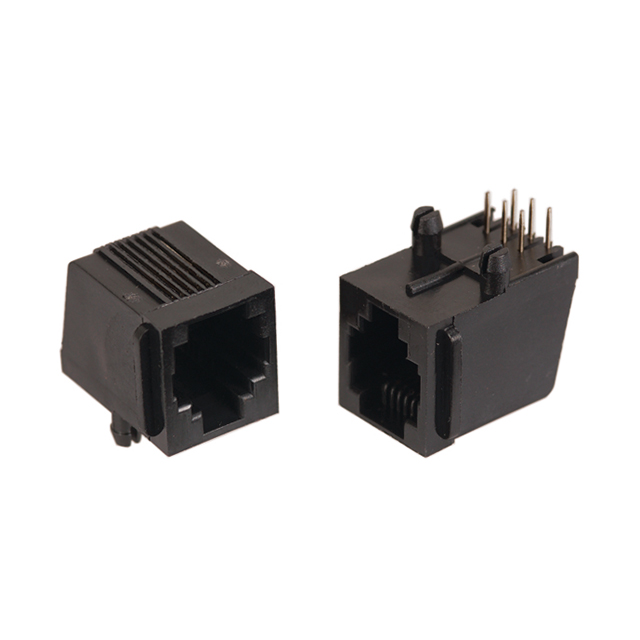

Modular jack 6P6C (RJ12)
Unit price (USD)
Quantity Price
1000+ 0.2059
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Number of ways: 6P6C
·Connector type: RJ12
·Orientation: Right angle
·Connector type: Modular jack
·Mounting type: Through hole mount

Materials

·Housing: PBT or PA46 or PA9T, with glass fiber, UL94V-0, black
·Contacts: Phosphor bronze
·Finish: Gold plated on contact area, 0.0254μm [1μ"] gold plated on solder tail,
with entire contact underplated 1.27μm [50μ"] Min. nickel
