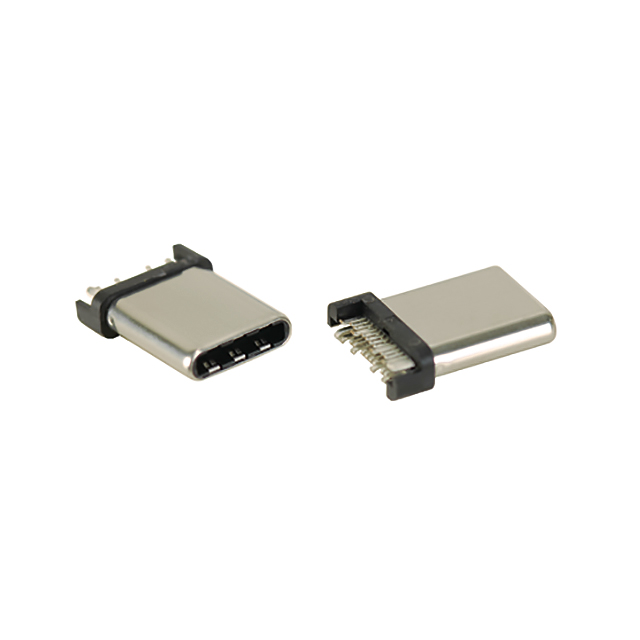

USB 3.1/C type plug
Unit price (USD)
Quantity Price
1000+ 0.5609
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Gender: Male
·No. of contacts: 24
·Mounting type: Straddle mount
·USB connector type: 3.1 Type C
·Current rating: 5A for VBUS pin, 1.25A for VCONN pin
·Contact resistance: 40mΩ Max. (initial)
·Insulation resistance: 100MΩ Min.
·Withstand voltage: 100VAC R.M.S. for 1 minute
·Operating temperature: -40°C to +85°C
·Mating force: 5~20N
·Unmated force: 8~20N
·Durability: 10,000 cycles

Materials

·Housing: Thermoplastic UL94-V0, black
·Contact: Copper alloy t=0.15mm
·GND latch: SUS t=0.35mm, matte tin plated (solder area)
·Shell: SUS t=0.15mm, nickel plated
Finish
·Contact area: 30u" PD/Ni+gold flash
·Solder area: 80u" Min. matte tin plated over nickel
