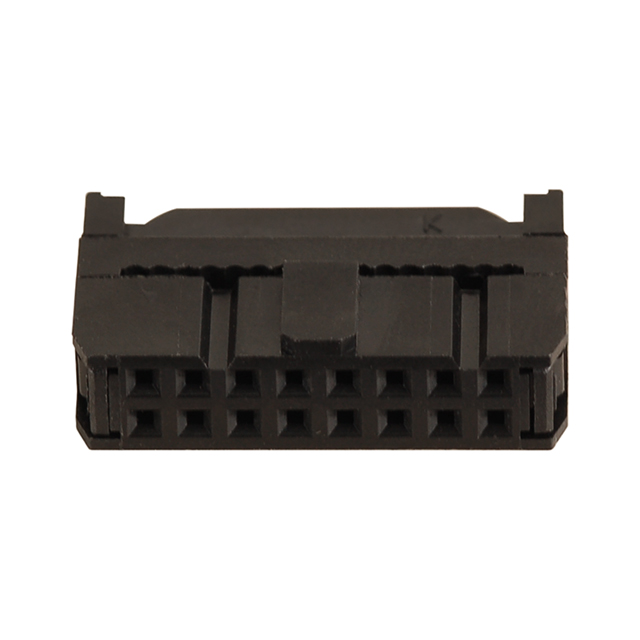

2.54mm IDC socket W/strain relief 16P
Unit price (USD)
Quantity Price
20+ 0.3269
100+ 0.1868
500+ 0.1090
1000+ 0.0908
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Specifications

·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 16
·No. of rows: 2
·Current rating: 3A
·Voltage rating: 250VAC/rms 60Hz
·Orientation: Right angle
·Termination: IDC
·Contact resistance: 20mΩ Max. at 1A DC
·Insulation resistance: 5000MΩ Min. at 500VDC
·Withstand voltage: 500VAC RMS 60Hz for 1 minute

Materials

·Insulator: Glass-filled thermoplastic PBT, UL94V-0
·Contact: Copper alloy
