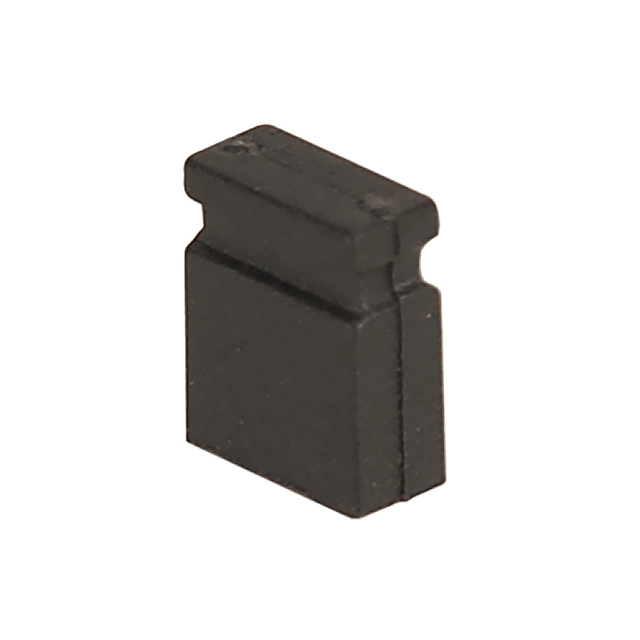

Electrical Characteristics
Specifications
·Pitch: 2.54mm
·Gender: Female
·No. of contacts: 2
·Height: 6.5mm
·Type: Closed top
·Current rating: 3A Max.
·Contact resistance: 30mΩ Max.
·Operating temperature: -55°C to +105°C
Materials
·Housing: Thermoplastic (UL94V-0), black
·Terminal: Copper alloy, gold plated
