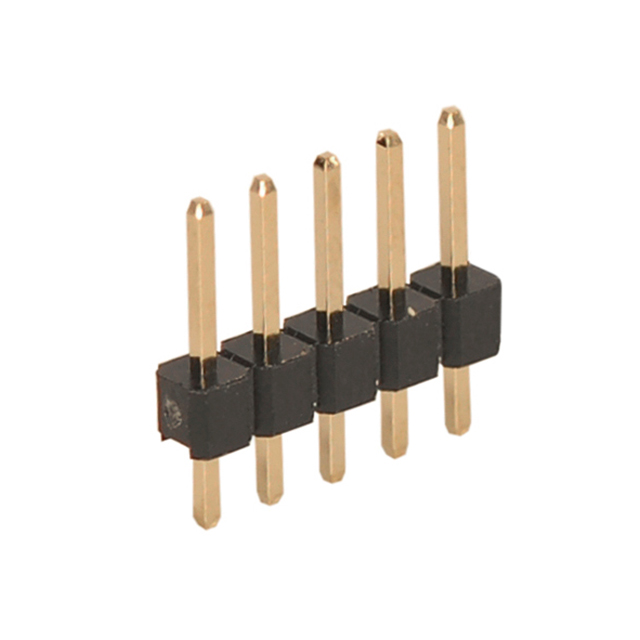

2.54mm Pin header single row 5P
Unit price (USD)
Quantity Price
1000+ 0.0330
1500+ 0.0192
3000+ 0.0160
Add
Enter Quantity to Check Lead Time
Data Sheet
Electrical Characteristics

Overview

A pin header is one of electrical connector, male pin header is often associated with flat cable connectors. A male pin header is composed of single, two or triple rows of metal pins molded into a plastic base. Common header pitches are 1.27mm (0.050 in), 2.0mm (0.079 in) and 2.54mm (0.100 in) pitch. Many pin lengths of pin header are available (2 pins to 40 pins).

Specifications

·Type : Pin header
·Pitch: 2.54mm
·No. of rows: 1
·No. of contacts: 5
·Current rating: 3A Max.
·Mounting type: Through hole
·Orientation: Straight
·Termination: Solder
·Insulation resistance: 1000MΩ Min. at 1000VDC
·Withstand voltage: 1000VAC RMS for 1 minute
·Operating temperature: -55°C to +105°C

Materials

·Housing: Thermoplastic (UL94V-0), black
·Terminal: Sq. 0.64mm copper alloy, gold plated
