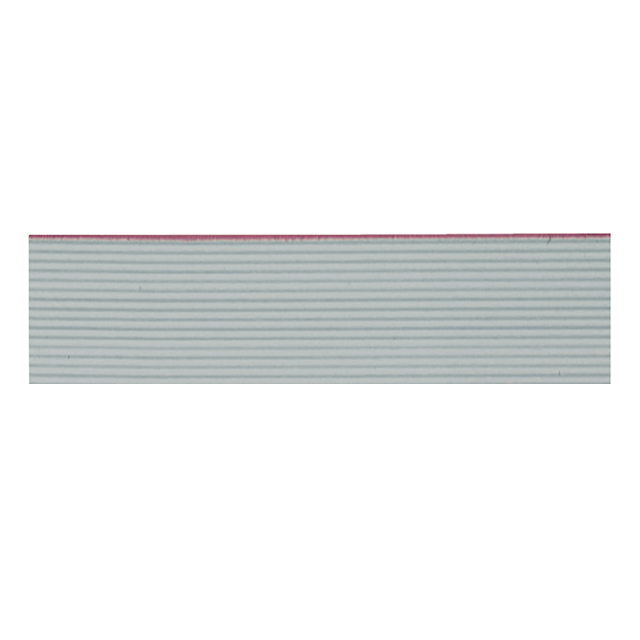

Electrical Characteristics
Specifications
·Pitch: 1.27mm
·Number of conductors: 16
·Voltage rating: 300V
·Cable width: 20.32mm
·Wire gauge: 28AWG
·Conductor resistance: 237.25Ω/KM Max. at 20°C
·Insulation resistance: 10MΩ/KM Min. at 20°C
·Dielectric strength: 2000VAC 60Hz for 1 minute
·Temperature of jacket: -20°C to +105°C
·Rated temperature: 105°C
·Jacket color: Gray
·Reel length: 100ft
Materials
·Conductor: TC, 7/F 0.125±0.008mm
·Jacket: 45P 105°C UL-PVC, gray#-pink (half atomizer)
