Electrical Characteristics
Specifications
·Pitch: 1.27mm
·No. of conductors: 20
·No. of strands: 7
·Voltage rating: 300V
·Cable width: 25.4mm
·Wire gauge: 28AWG (7 x Φ0.127mm)
·Conductor resistance: 237Ω/KM Max.
·Insulation resistance: 100MΩ/KM Min.
·Dielectric strength: 2000VAC Min. for 1 minute
·Insulation thickness average: 9 mil
·Insulation thickness: 7 mil Min.
·Capacity: 45 pF/m
·Inductance: 1.5 μH/m
·Impedance: 100Ω

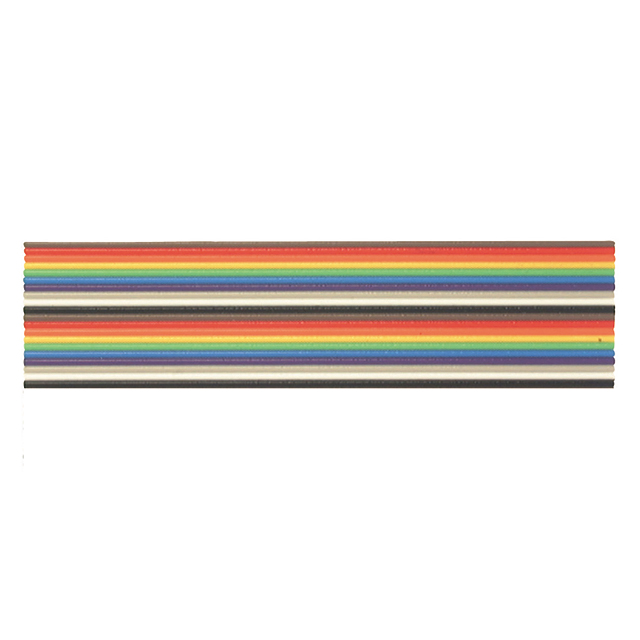

·Jacket color: Multi-color
·Reel length: 100ft
Materials
·Insulation: Polyvinyl chloride (PVC) ten color available
·Extruded PVC insulated singles bonded together
