Overview

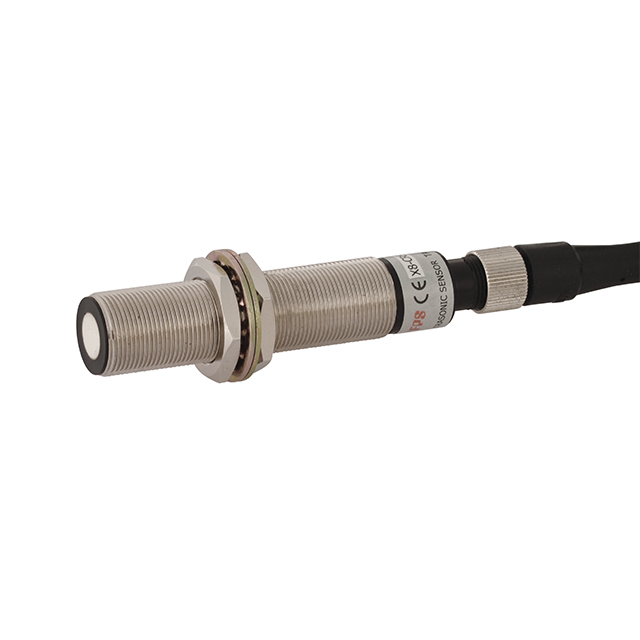

Ultrasonic Sensor – Distance and Object Detection
Ultrasonic sensors use sound waves to measure distance and detect objects. Commonly applied in robotics, automotive parking systems, industrial automation, and smart devices, they deliver accurate, non-contact measurement across diverse environmental conditions.

Features

·Ensure the stable detection of a variety of objects regardless of the color, transparency, glass, material or non-material.
·Teach-in button set up, can provide outstanding background suppression to detect objects reliably.
·Reversed polarity & short circuit protection.
·IP65 protection, high immunity to dirty, dust and fog.

Specifications

·Switching output: 0~10V
·Sensing distance: 8.5~55cm
·Standard sensing object: Plate glass 100x100mm
·Operating voltage: 18~30VDC
·Response time: <200ms
·Ultrasonic frequency: 200kHz
·Hysteresis: 20mm
·Operation indicator: Yellow LED
·Ambient temperature: -20°C to 70°C
·Humidity: RH 35~85%
·Connecting method: M12 plug connector
