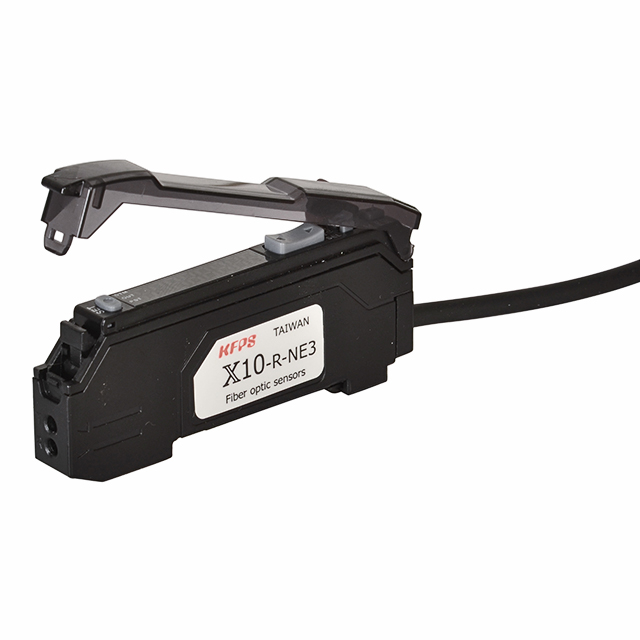

Features

:
·Highly visible dual LED monitor, automatic and manual of sensitivity adjustment, easy setting for wide range application.
·Short response time, equipped with automatic maintenance (DATUM) and long distance detect functions.
·Reversed polarity & short circuit protection.
·Protective grade : IEC IP65

Specifications

·Output: NPN NO+NC
·Operating voltage: 12~24VDC
·Response time: High speed mode≦0.1ms, Fine mode≦0.5ms, Super mode≦1ms, Mega mode≦16ms
·Timer function: On-delay / Off-delay / One shot-delay (0.1~9999ms) / Timer off
·Load current: <100mA
·Response time: <5ms
·Operation indicator: Red LED
·Light source: Red LED
·Ambient temperature: -20°C to 55°C
