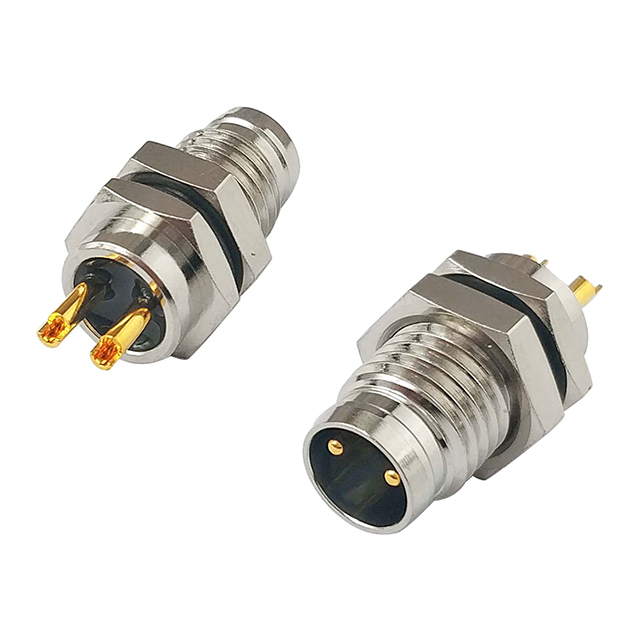

Waterproof male M8 connector 2 contacts 60V 4A
Can reach to IP67
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Gender: Male
·Connector size: M8
·No. of contacts: 2
·Rated current: 4A
·Rated voltage: 60V
·Mounting type: Panel mount
·Body orientation: Straight
·Termination method: Solder
·Contact resistance: 10MΩ Max.
·Insulation resistance: 1000MΩ Min.
·Dielectric withstanding vltage: 800VAC for 1 minute
·Operation temperature: -20°C to +85°C
·Protectiion degree: IP67


·Housing: PBT, black
·Contact: Brass, 10 micro inches Min. gold plated
·Nut: Brass, nickel plated
·Shell: Brass, nickel plated
·O-Ring: NBR, black
