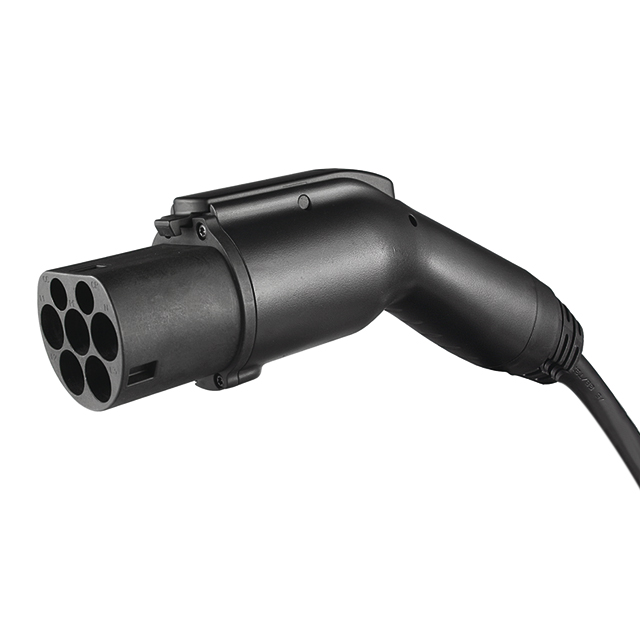

EV charging connector 32A cable length 5M with CQC approval with protective cap
GB / T 20234 standard
Can reach to IP54
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Conformity in surfact design with GB/T 20234-2015.
·Ergonomic and streamlined designs allow for user-friendly interatcion.
·High level of protection against severe environment.
·Products passed 5000N driveover test.
·Applicable to connection B and connection C of IEC61851.
·BEV, PHEV, charging pile, cord set and domestic wall-mounted charger, etc.


·Voltage rating: 250VAC
·Current rating: 32A
·Cable length: 5M
·Force: ≦100N
·Lifespan: ≧10000 times
·Flammability rating: UL94V-0
·IP rating: With cap IP54 (Body IP67)
·Operating temperature: -30°C to +50°C
·Plug color: Black
·Main materials: PBT / PC / PA66 / Coppery alloy
