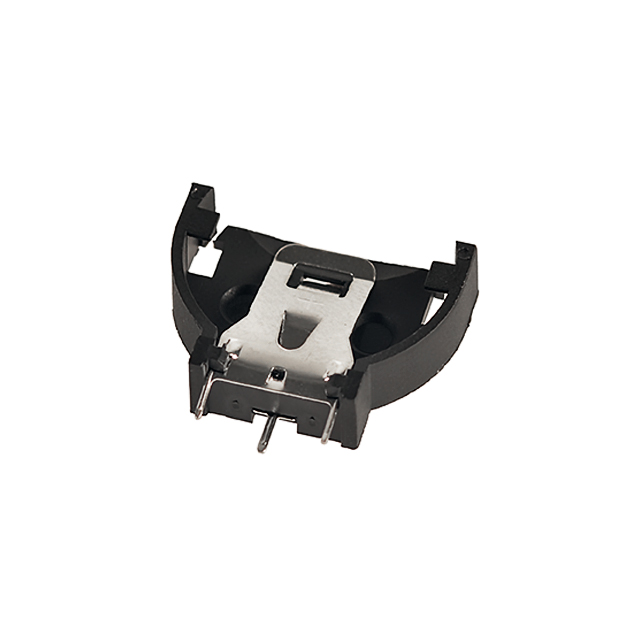

Coin cell battery holder for CR2032
This item can't be ordered online, please send inquiry!!
Data Sheet
Electrical Characteristics


·Battery type: Coin cell
·Battery cell size: CR2032
·Number of cells: 1
·Currint rating: 2A (AC/DC)
·Voltage rating: 500V (AC/DC)
·Mounting type: Through hole
·Contact resistance: 30mΩ Max.
·Insulation resistance: 1000MΩ Min.
·Operation temperature: -55°C to +105°C
·Humidity: 40°C and 90-95% RH for 96 hours


·Housing: Nylon 66+15%GF UL94V-0, black
·Contact: Phosphor bronze 0.3mm THK, tin plated over nickel
