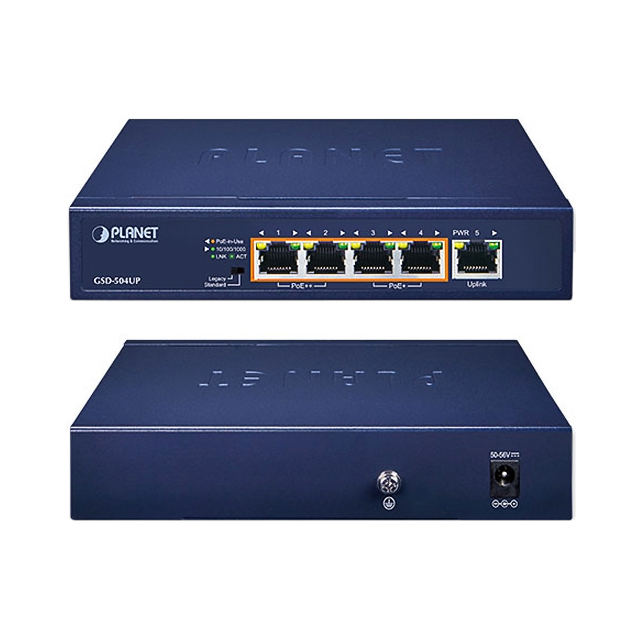

2 ports 90W 802.3bt PoE++ & 2 ports 30W 802.3at PoE+ with 1 uplink port switch 55VDC 2.8A with approval
This item can't be ordered online, please send inquiry!!
Electrical Characteristics


·Power rating: 90W+30W
·Number of ports: 5
·Data rate: 10M/100M/1Gbps
·PoE power supply type:
Ports 1 to 2: End-span + Mid-span
Ports 3 to 4: End-span
·PoE power output budget: 120W (total)
·PoE power output:
Ports 1 to 2: 90W Max.
Ports 3 to 4: 30W Max.
Input port: 1 x RJ45 STP data in
Output port: 2 x 802.3bt PoE++ injector function (ports 1 & 2) / 2 x 802.3af/at PoE+ injector function (ports 3 & 4)
DC socket: 1 x 55V DC input socket, 2.8A Max.
·Network cable:5 x 10/100/1000BASE-T RJ45 auto MDI/MDIX ports
·LED indicators
System: PWR (orange)
Per PoE port: PoE (orange, ports 1 to 4)
Ethernet port: LNK (green)
·Operating temperature: 0°C to +50°C
·Storage temperature: -10°C to +70°C
·Dimension: 168 x 93 x 32 mm
·Weigth: 414g
