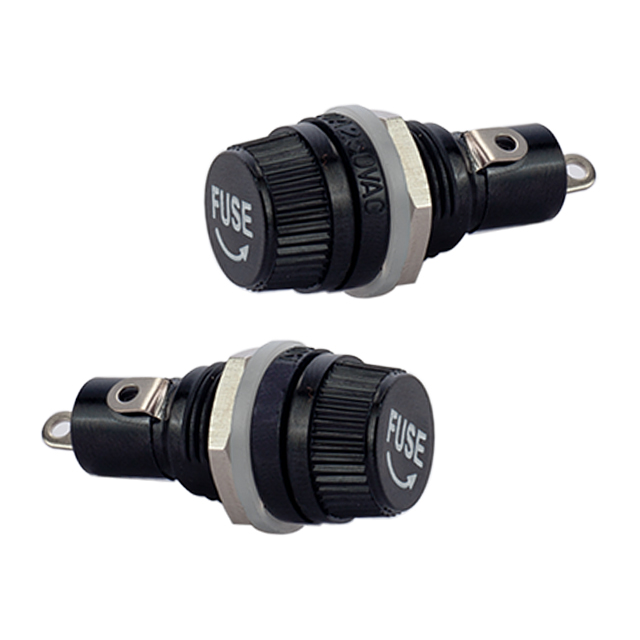

Fuse Holder – Secure Fuse Mounting
Fuse holders mount and protect electrical fuses for safe circuit protection. Available in panel, PCB, and in-line types, they provide insulation, easy replacement, and reliability in power and electronics applications.
Specifications
·Current rating: 10A
·Voltage rating: 250VAC
·Fuse size: 5.2 x 20mm
·Mounting: Panel mount
·Termination: Solder lug
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 1500VAC for 1 minute
Materials
·Housing: Black, PF
·Terminals: Brass, nickel plated
